AIDA MODEL C2-16 GAP FRAME PRESS, 165 TON

BrandNot Specified

Model

TypePresses, Gap Frame, Double Crank

Stock #21094

ConditionNot specified

Year2006

LocationHOLLAND, Ohio
United States

Request a Quote
AIDA MODEL C2-16 GAP FRAME PRESS, 165 TON
AIDA MODEL C2-16 GAP FRAME PRESS, 165 TON
AIDA MODEL C2-16 GAP FRAME PRESS, 165 TON
AIDA MODEL C2-16 GAP FRAME PRESS, 165 TON
AIDA MODEL C2-16 GAP FRAME PRESS, 165 TON
AIDA MODEL C2-16 GAP FRAME PRESS, 165 TON
AIDA MODEL C2-16 GAP FRAME PRESS, 165 TON
AIDA MODEL C2-16 GAP FRAME PRESS, 165 TON
AIDA MODEL C2-16 GAP FRAME PRESS, 165 TON
AIDA MODEL C2-16 GAP FRAME PRESS, 165 TON
  • AIDA MODEL C2-16 GAP FRAME PRESS, 165 TON
  • AIDA MODEL C2-16 GAP FRAME PRESS, 165 TON
  • AIDA MODEL C2-16 GAP FRAME PRESS, 165 TON
  • AIDA MODEL C2-16 GAP FRAME PRESS, 165 TON
  • AIDA MODEL C2-16 GAP FRAME PRESS, 165 TON
  • AIDA MODEL C2-16 GAP FRAME PRESS, 165 TON
  • AIDA MODEL C2-16 GAP FRAME PRESS, 165 TON
  • AIDA MODEL C2-16 GAP FRAME PRESS, 165 TON
  • AIDA MODEL C2-16 GAP FRAME PRESS, 165 TON
  • AIDA MODEL C2-16 GAP FRAME PRESS, 165 TON

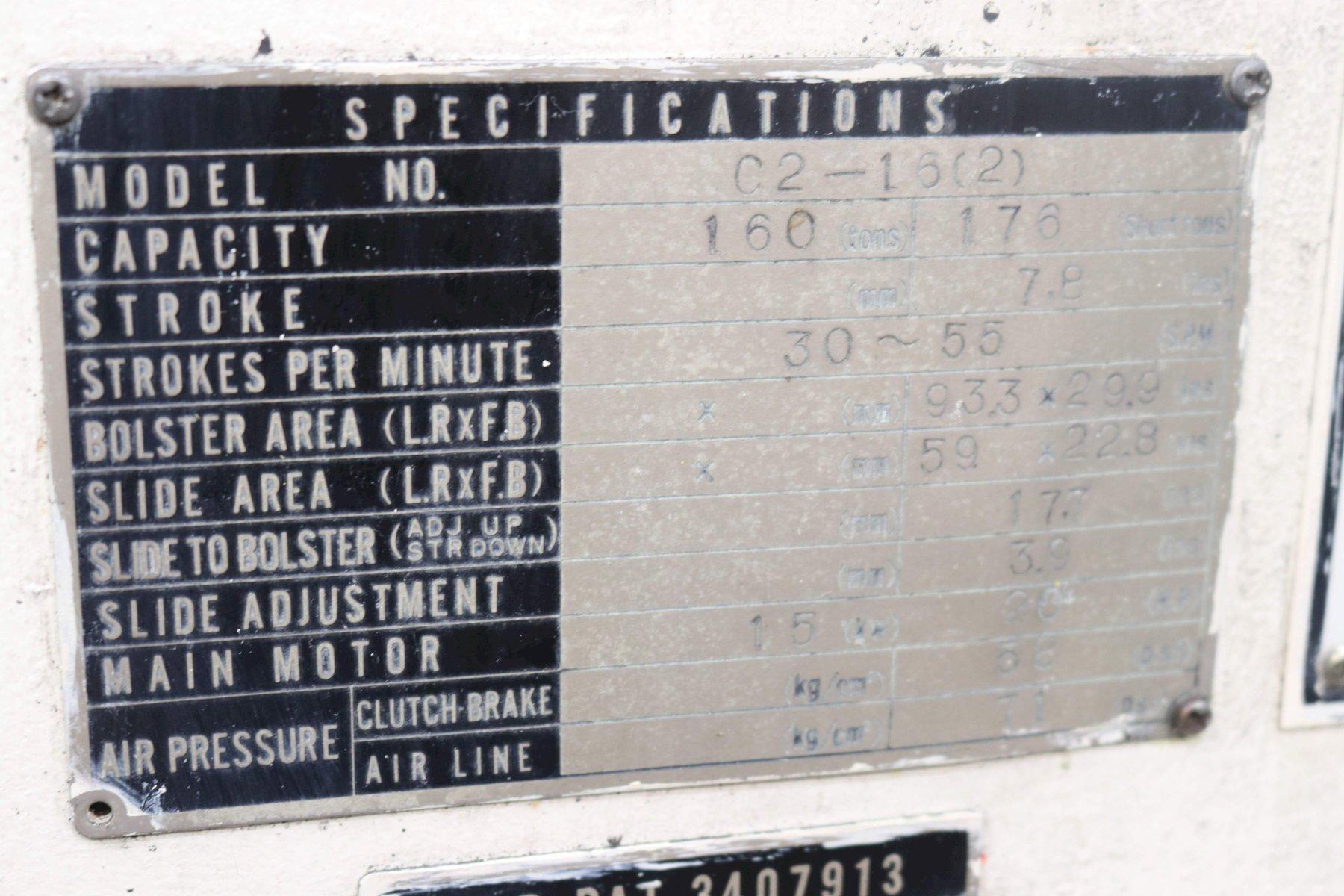

CAPACITY METRIC/SU: 160 METRIC 176 TON US

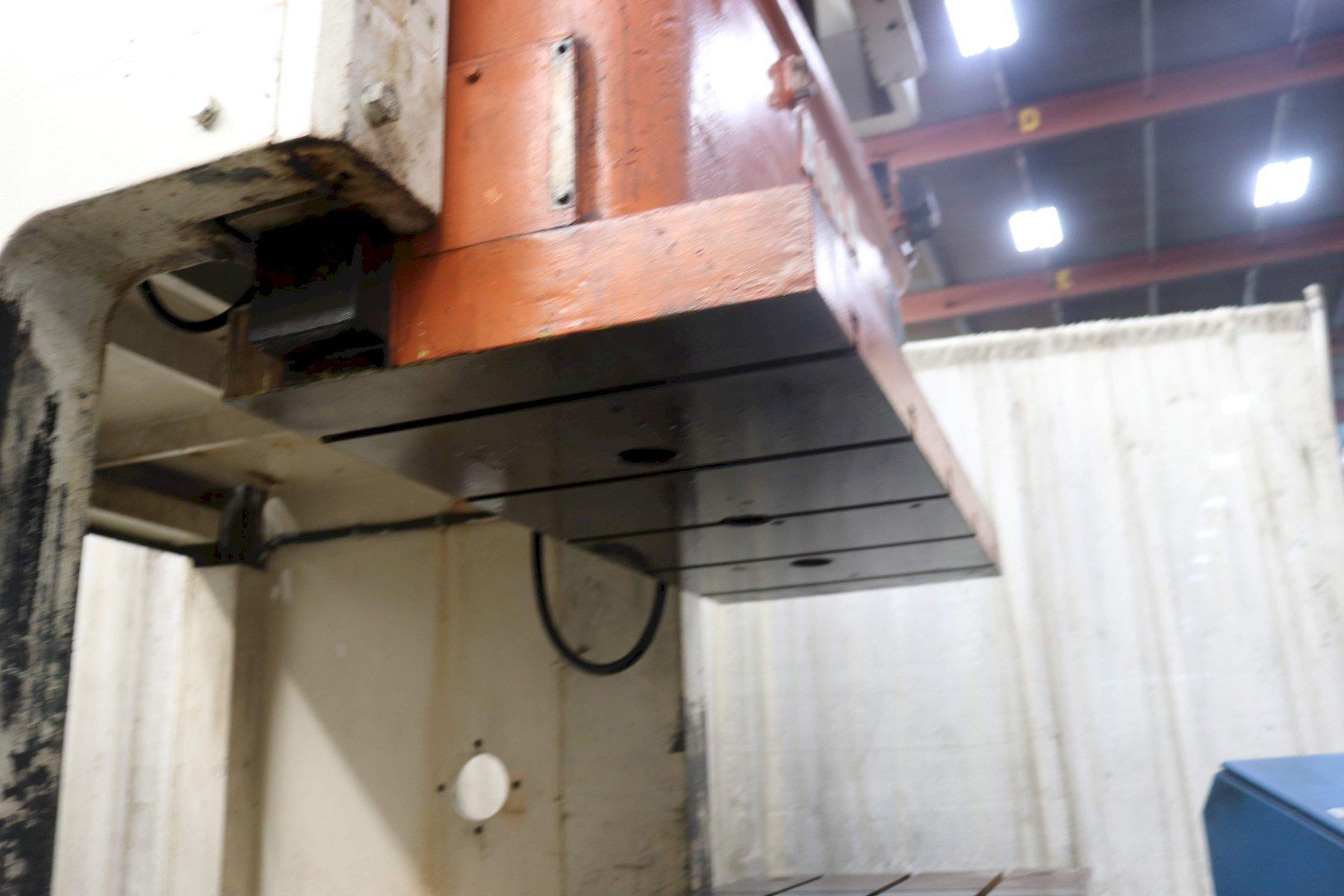

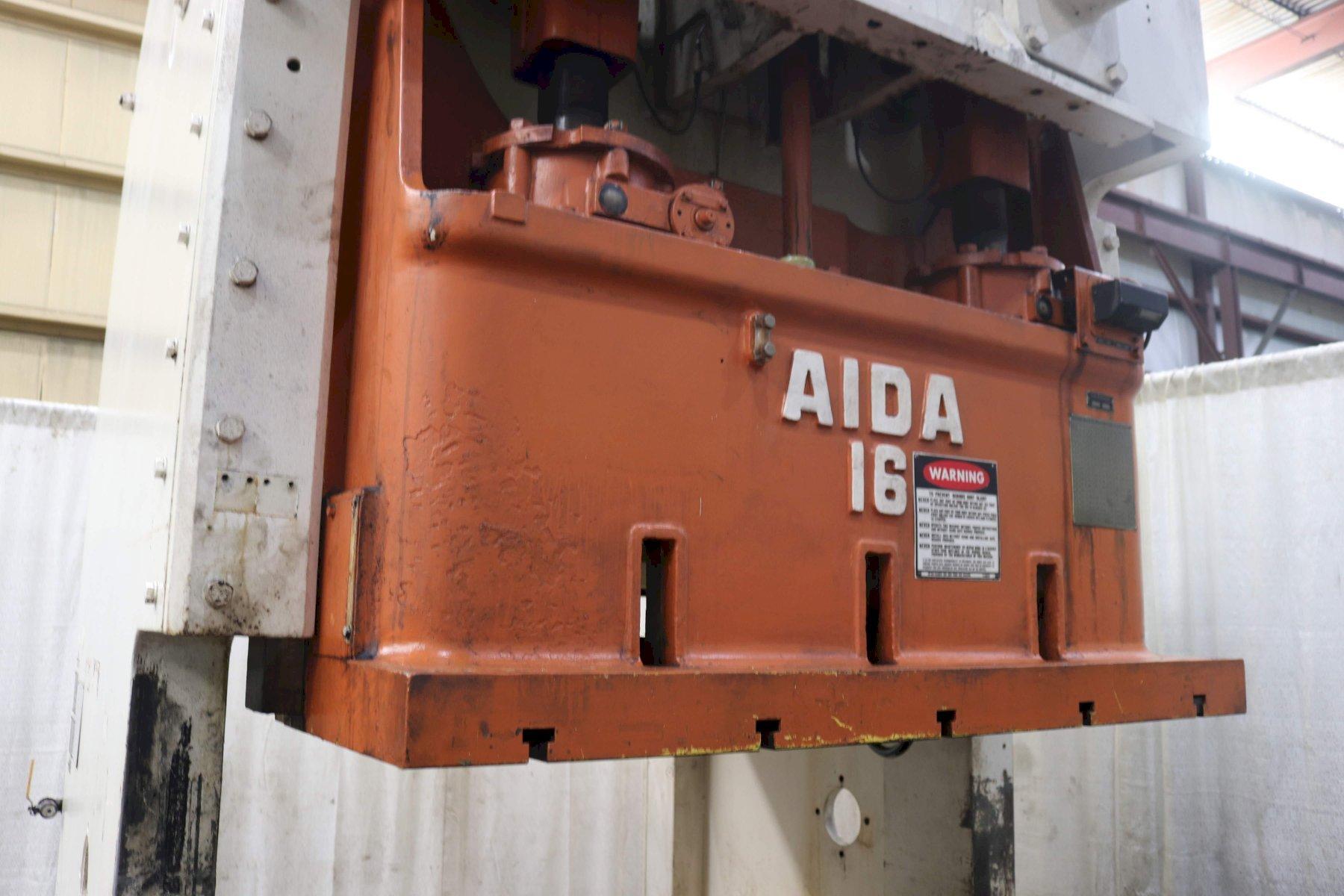

AREA OF RAM: 59" X 22.8"

AREA OF BED:  93.3" X 29.9

STROKE: 7.87"

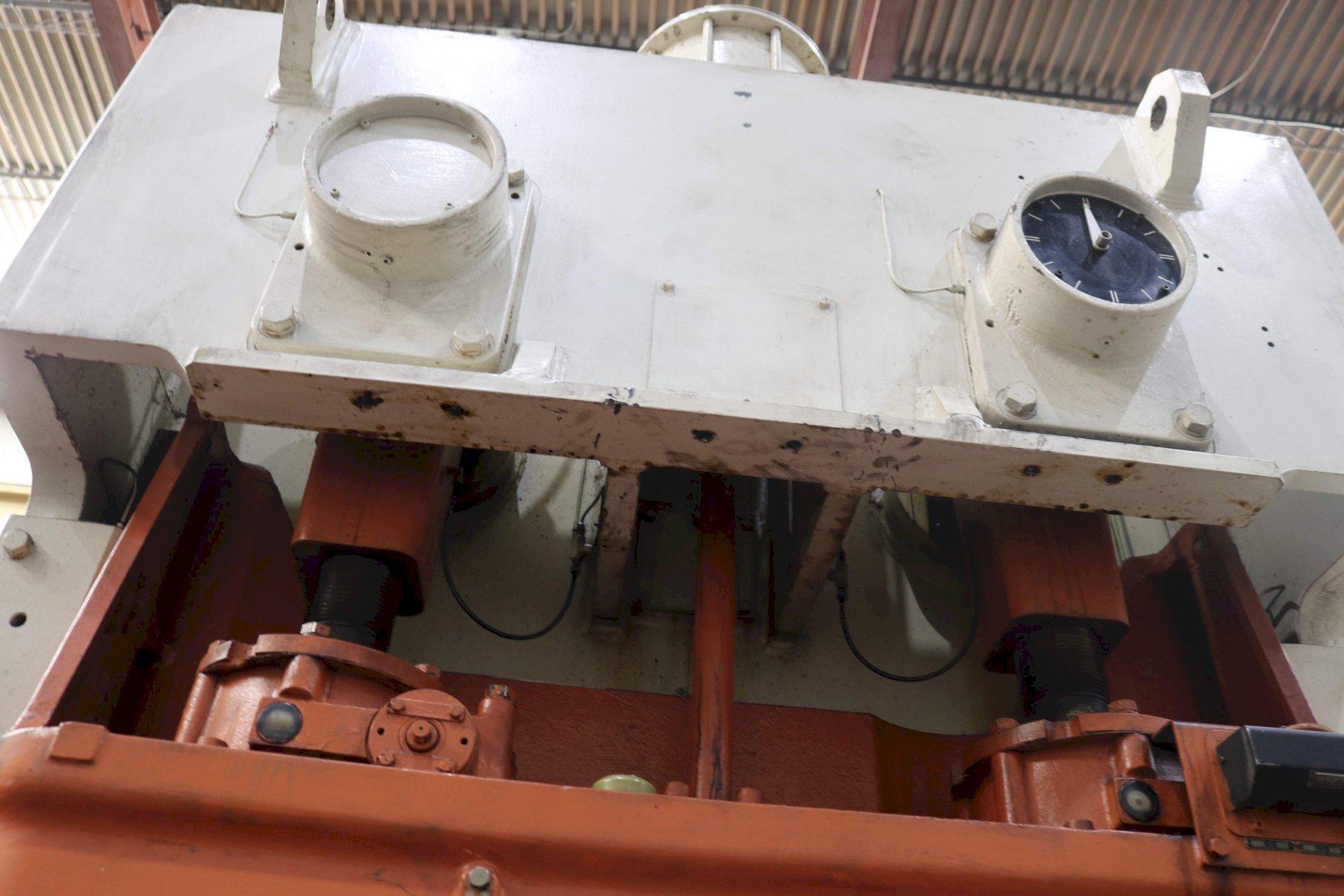

SLIDE ADJUSTMENT (MOTORIZED): 3.93"

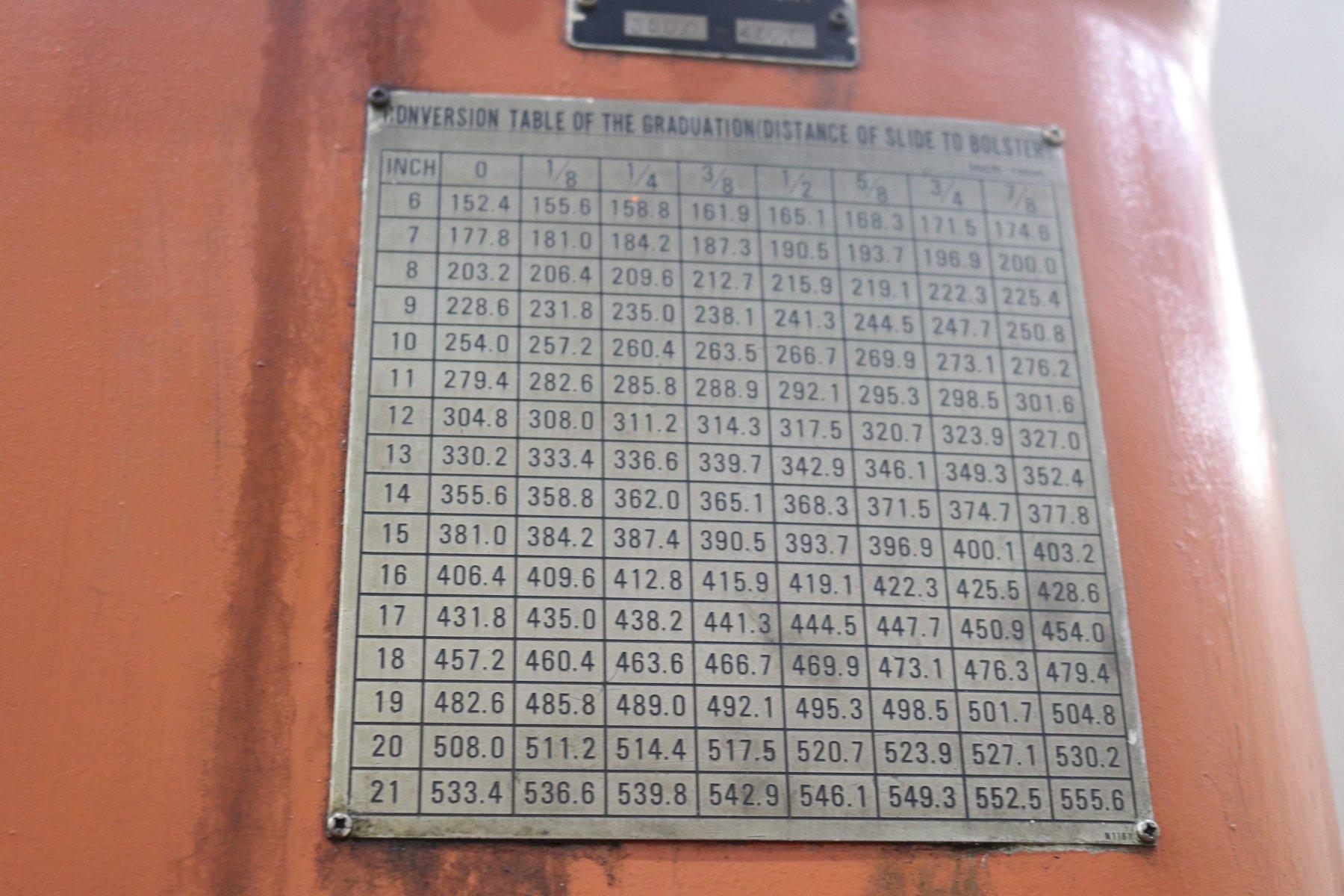

SHUT HEIGHT OVER BOLSTER: 17.7"

STROKES PER MINUTE: 30 TO 55 SPM

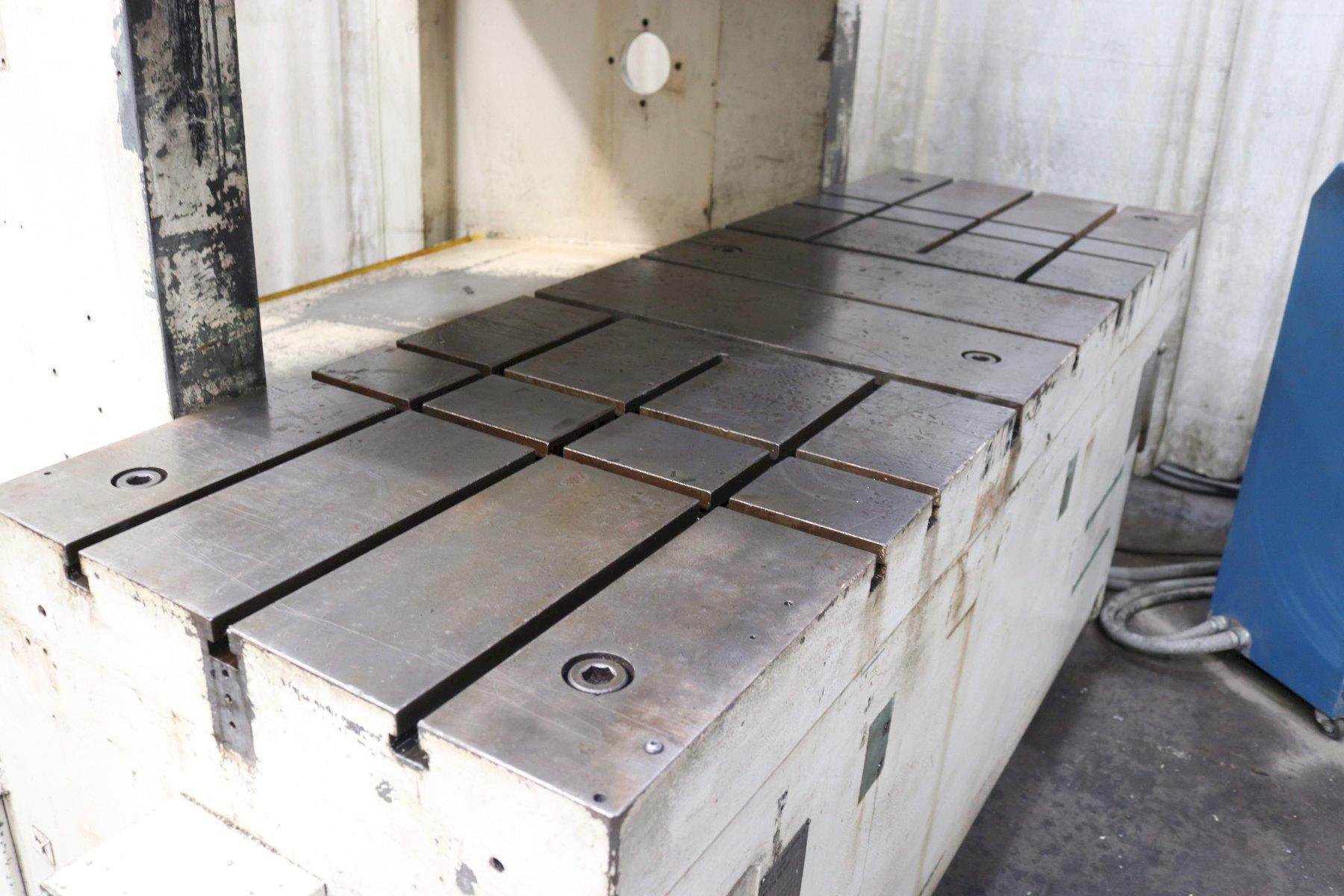

AREA OF T SLOTTED BOLSTER:  93.3 X 29-3/4" X 4-3/4"

DISTANCE BETWEEN HOUSINGS: 63"

AIR CLUTCH: YES

AIR BRAKE: YES

AUTOMATIC LUBE: YES

INCH, SINGLE & CONTINUOUS:  YES

DUAL PALM BUTTONS:  YES

FLOOR TO TOP OF: 38-1/2"

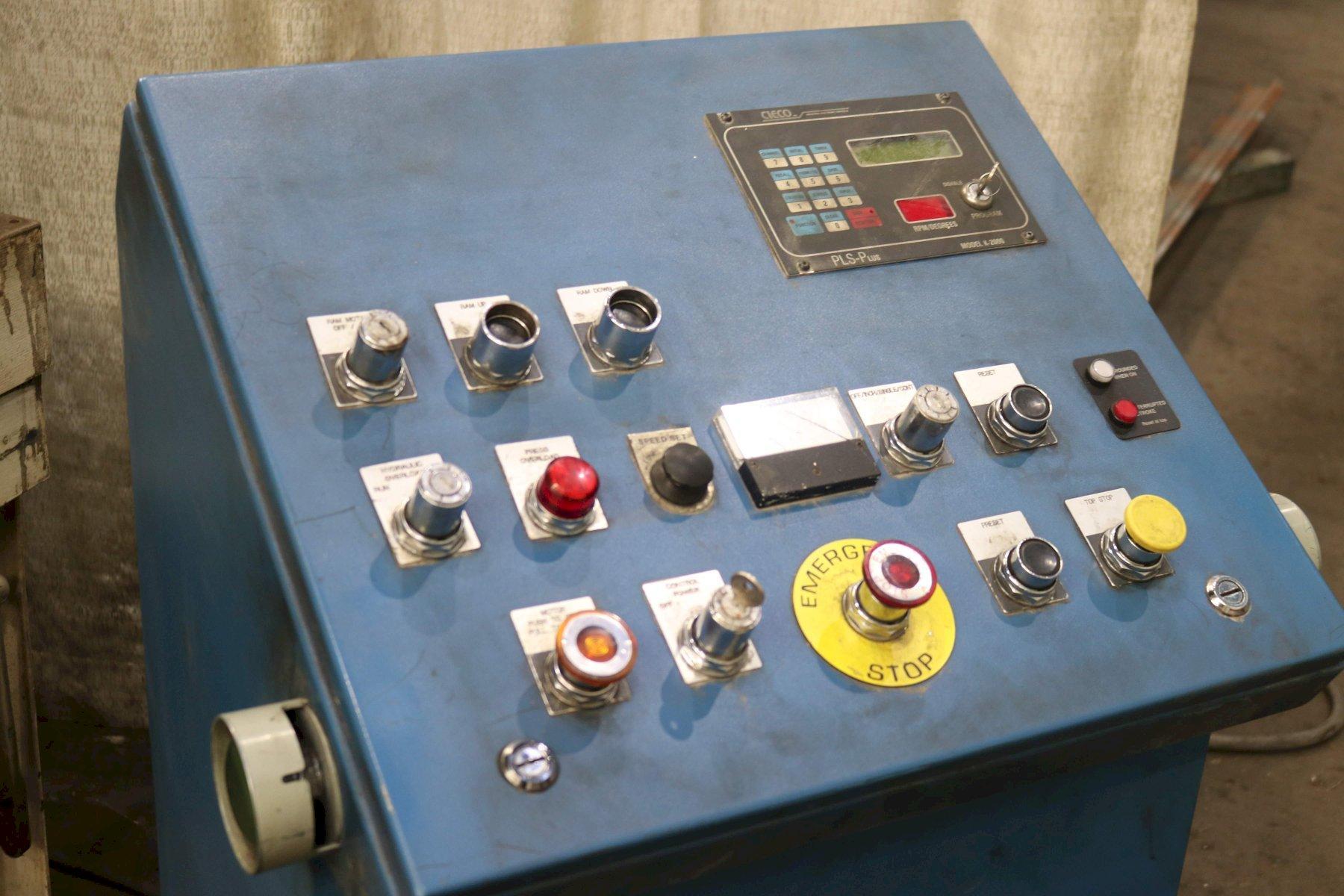

CONTROLS: CIECP PLUS

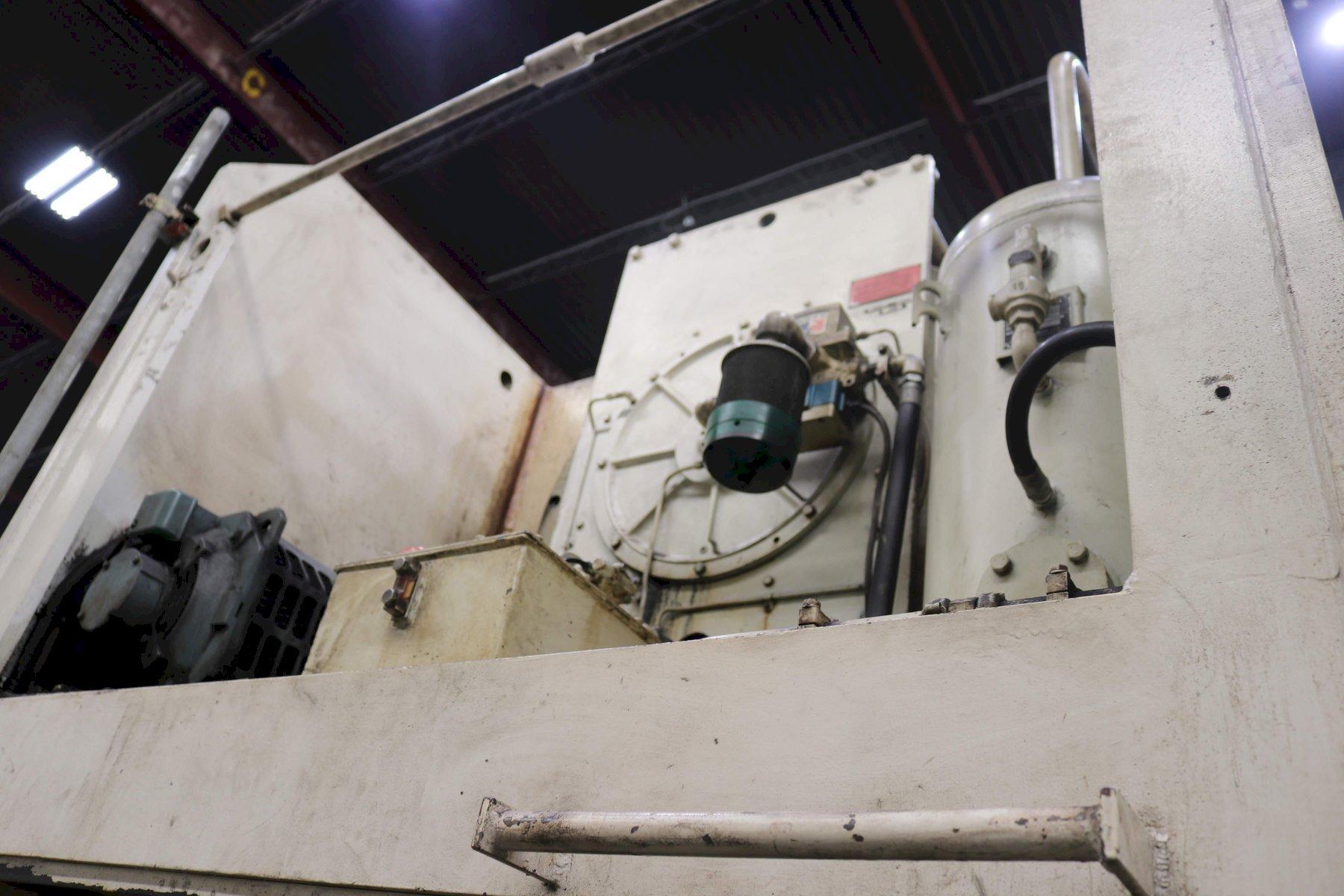

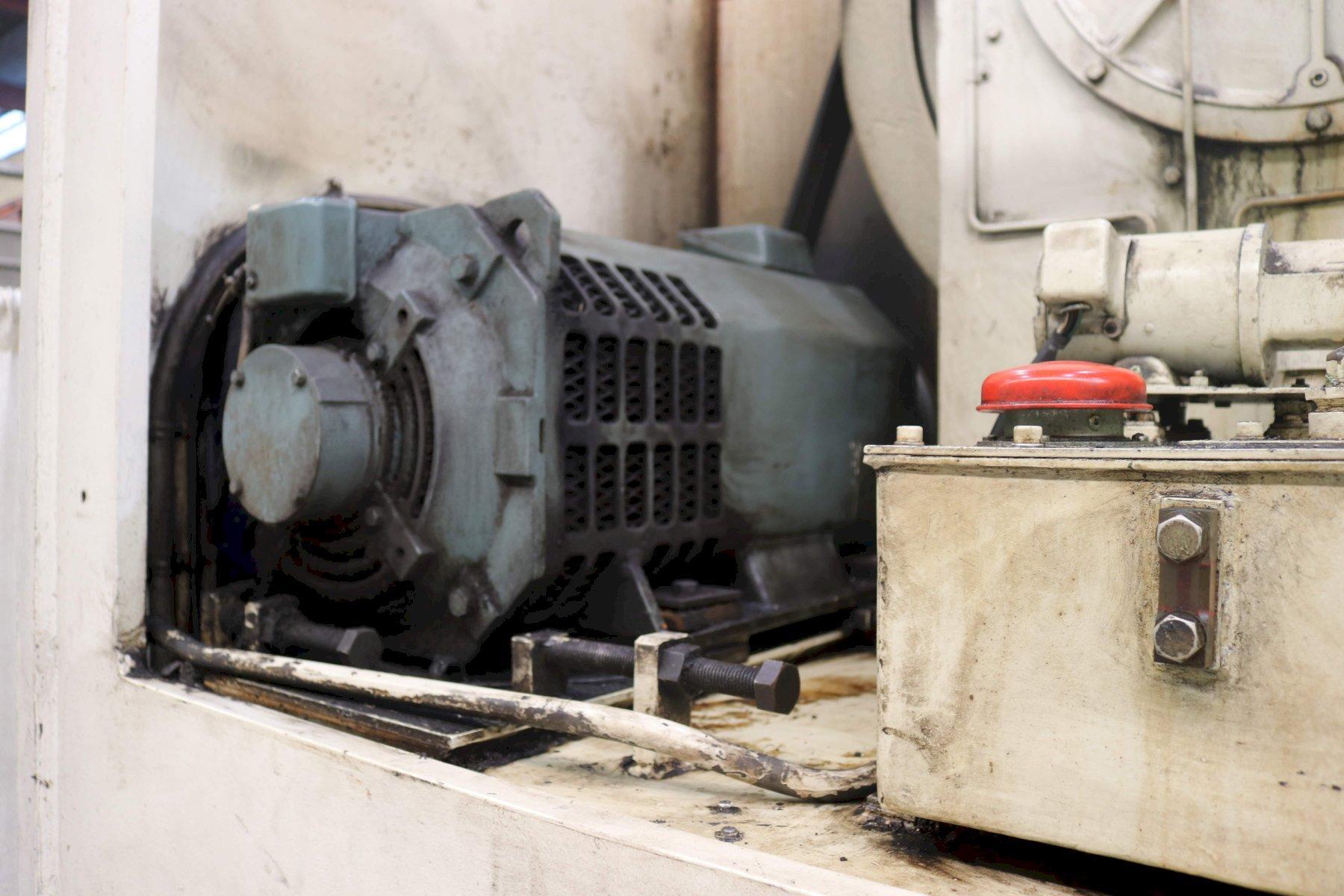

MOTOR : 20 HORSEPOWER
