Machine

Swing Over Bed: 13”

Swing Over Cross-Slide: 7.75”

Distance Between Centers: 40”

Main Drive Motor: 3 HP

Bar Capacity: 1.375”

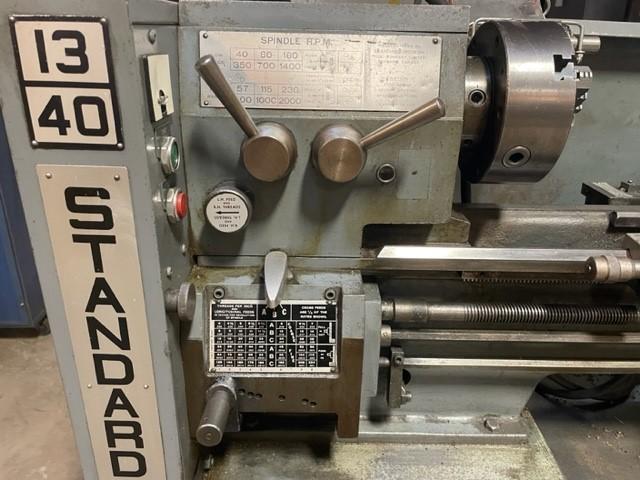

Headstock

Spindle Speed Ranges: 12

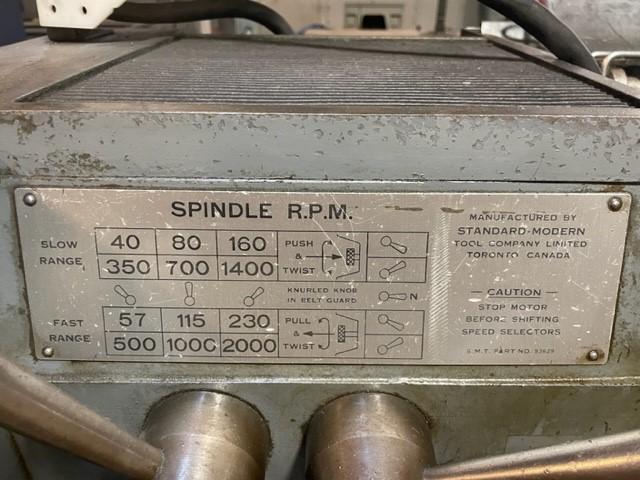

Speed Range: 40 – 2,000 RPM

Spindle Nose Camlock: D1-4

Spindle Hole: 1.375”

Spindle Center: 3 MT

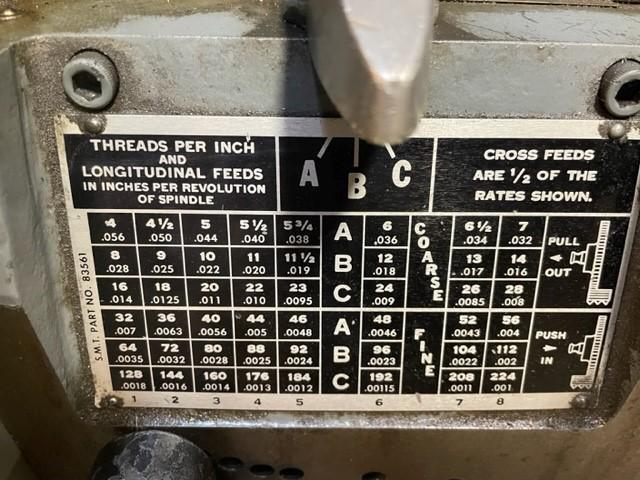

Feedbox

Number of Feed Changes: 54 (in/mm)

Number of Thread Changes: 54 (in/mm)

Inch Feed Range, Longitudinal: .001 - .062 IPR

Inch Feed Range, Cross: .0005 - .031 IPR

Inch Thread Range: 4- 224 TPI

Metric Feed Range, Longitudinal: .031 – 1.74 mm/rev

Metric Feed Range, Cross: .015 - .87 mm/rev

Metric Thread Range: .125 – 7 mm lead

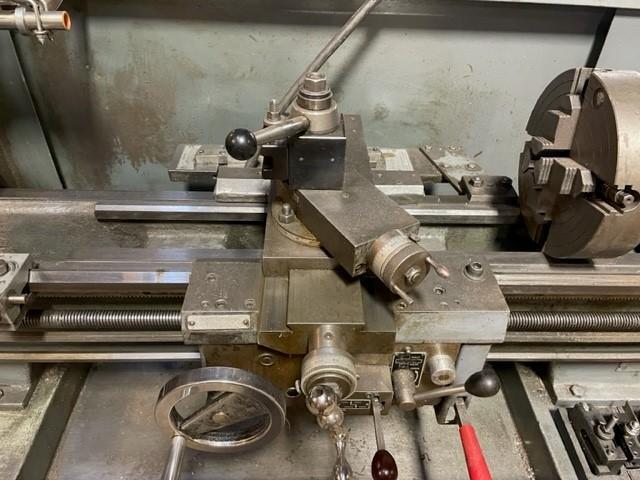

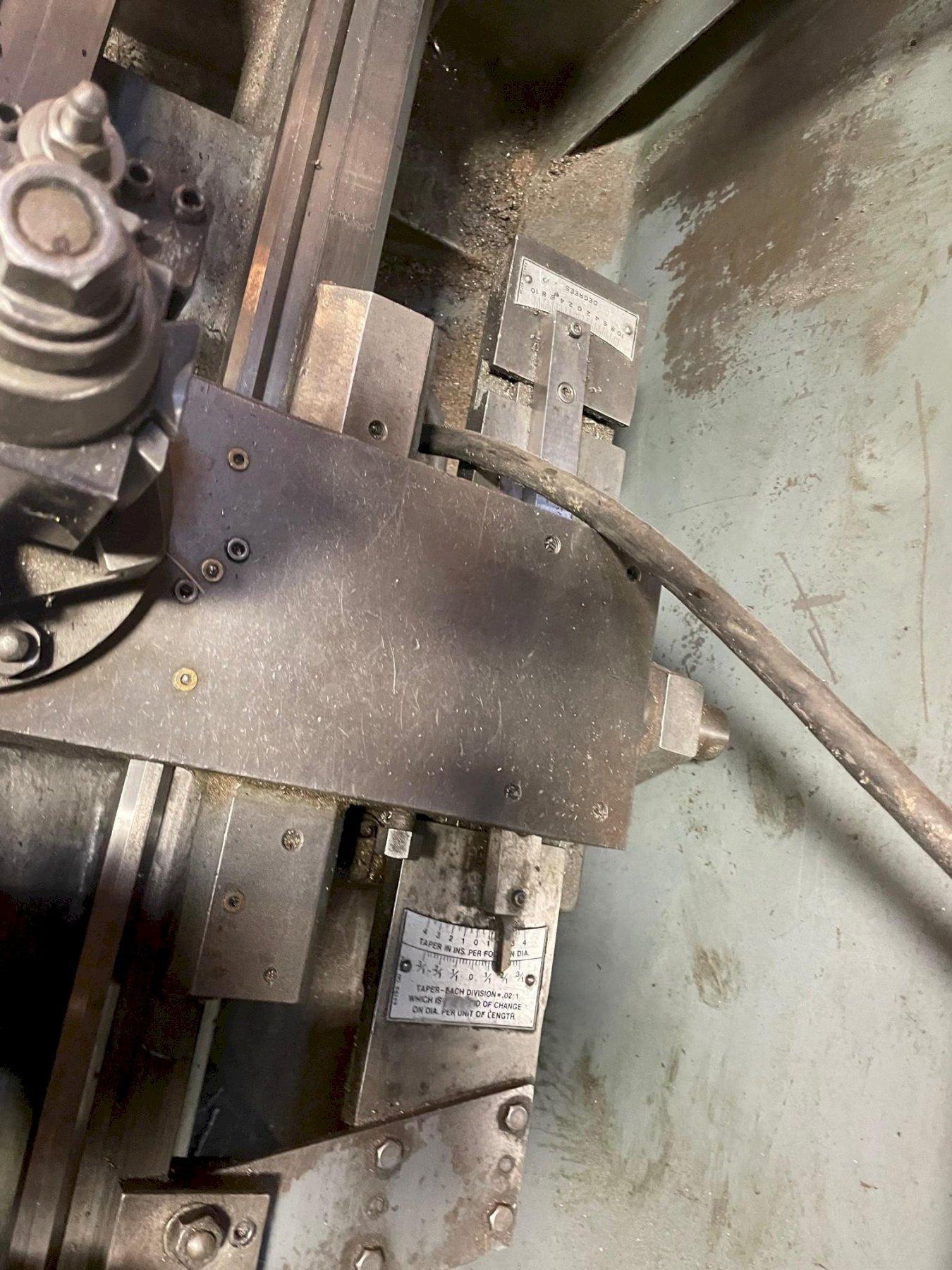

Carriage Cross-Slide

Cross-Slide Travel: 7"

Compound Travel: 3.25”

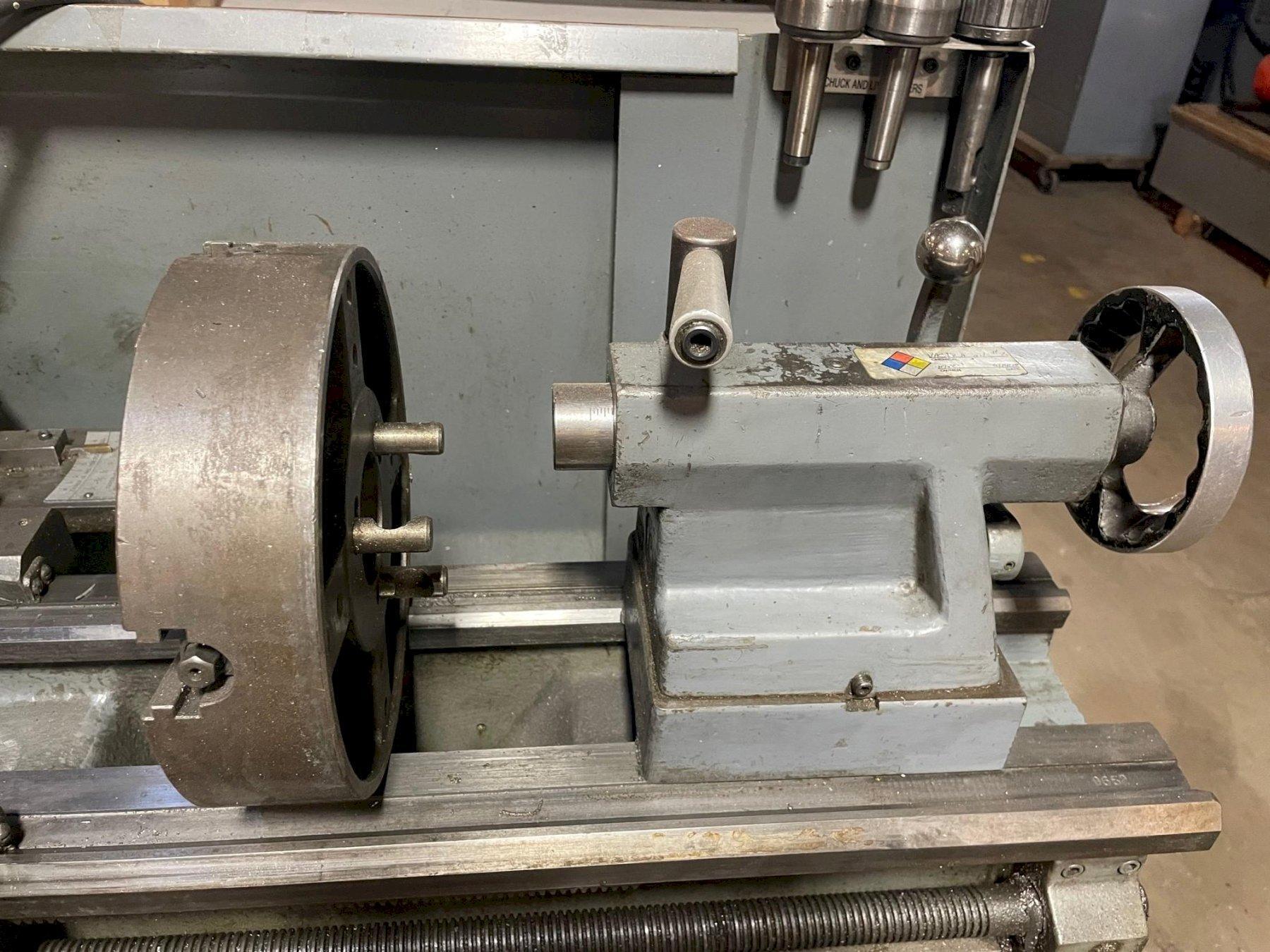

Tailstock

Tailstock Spindle Diameter: 1-56”

Tailstock Spindle Travel: 4"

Tailstock Spindle Taper: 3 MT

Equipped With

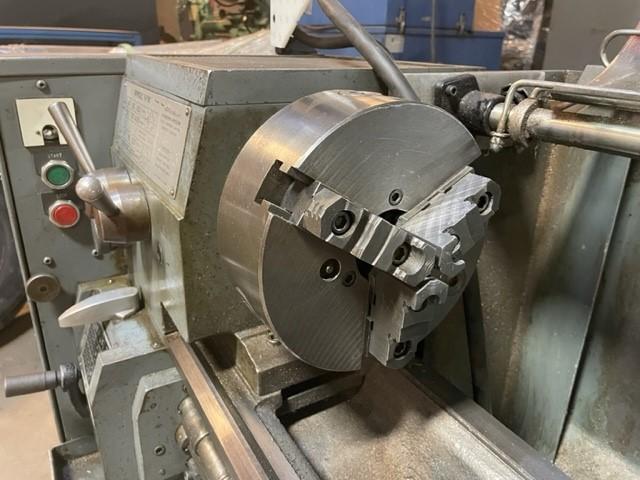

3-Jaw Chuck

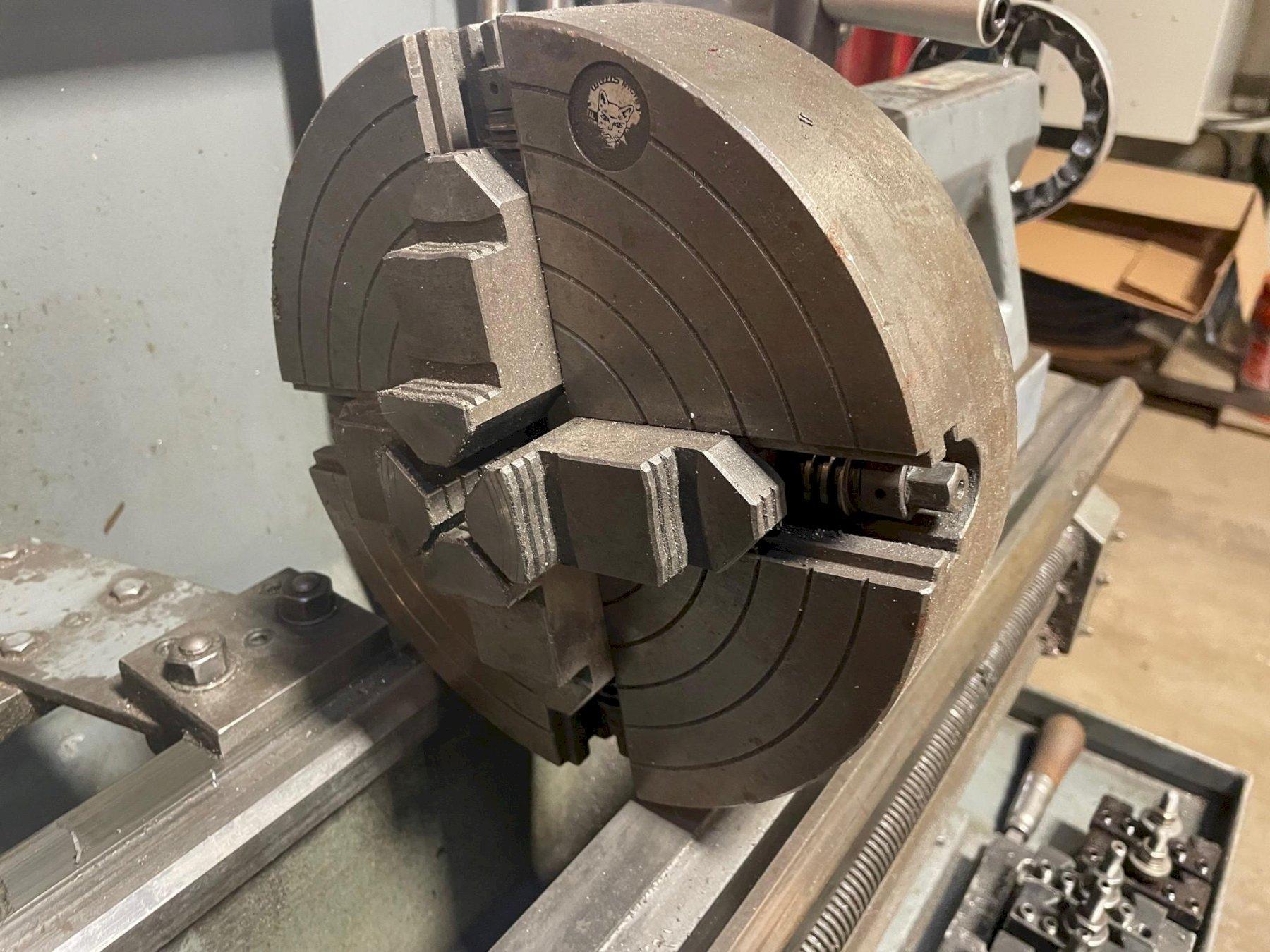

4-Jaw Chuck

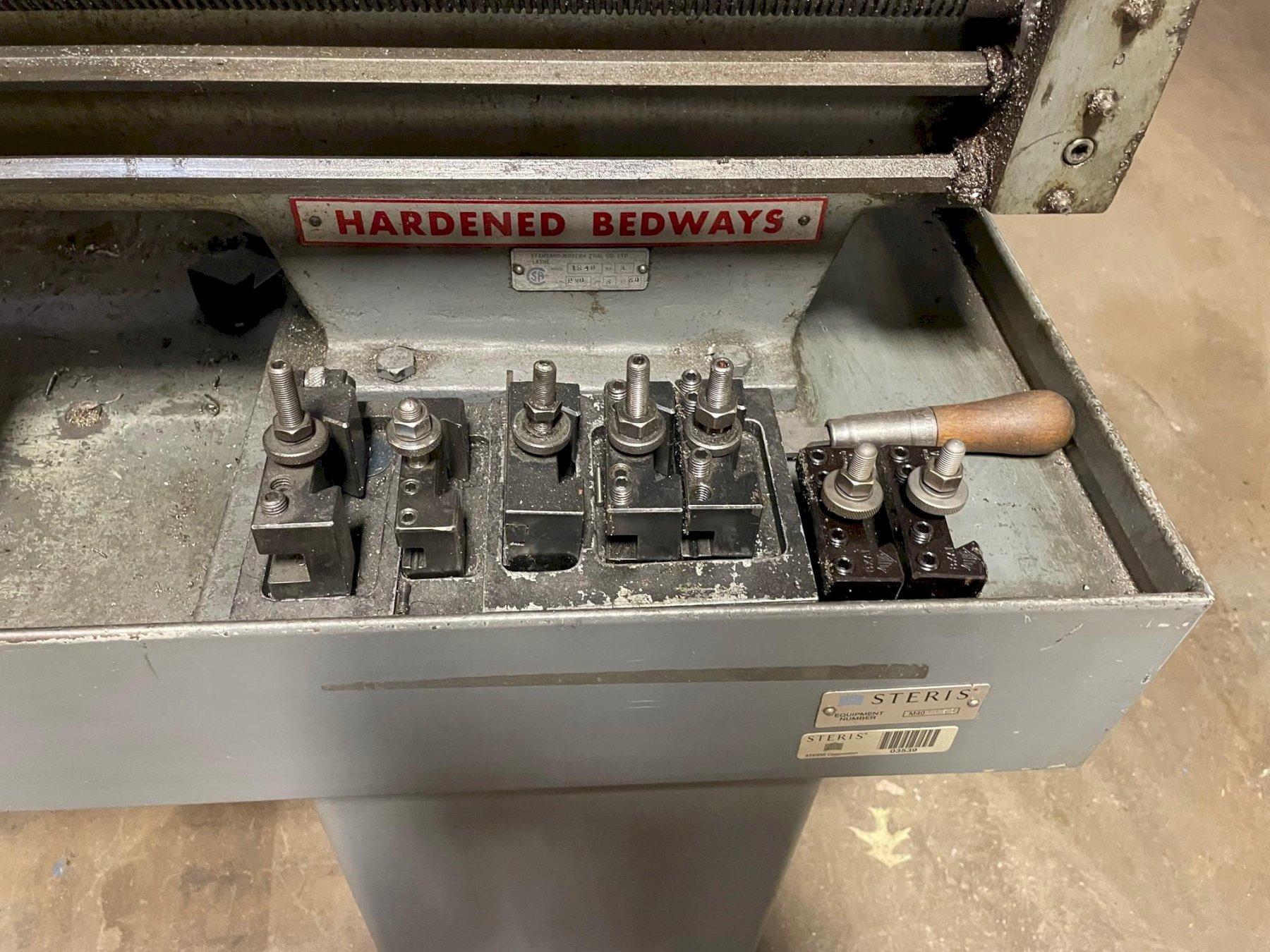

Quick Change Tool Post with Holders

Lathe Centers

Jacobs Tailstock Drill Chucks
