BrandSTANDARD MODERN
Model2060
TypeLathes, Engine
Stock #21124
ConditionNot specified
Year
LocationHATFIELD, Pennsylvania
United States
| Swing | 22 inches |
| Centers | 60 inches |
| Spindle Bore | 3.06 inches |
| Power | 15 horsepower |
| RPM | 1599.9999 |
| Swing Over Cross Slide | 12 inches |
Machine
Swing Over Bed: 22”
Swing Over Bed and Saddle: 20”
Swing Over Cross-Slide: 12”
Distance Between Centers: 60”

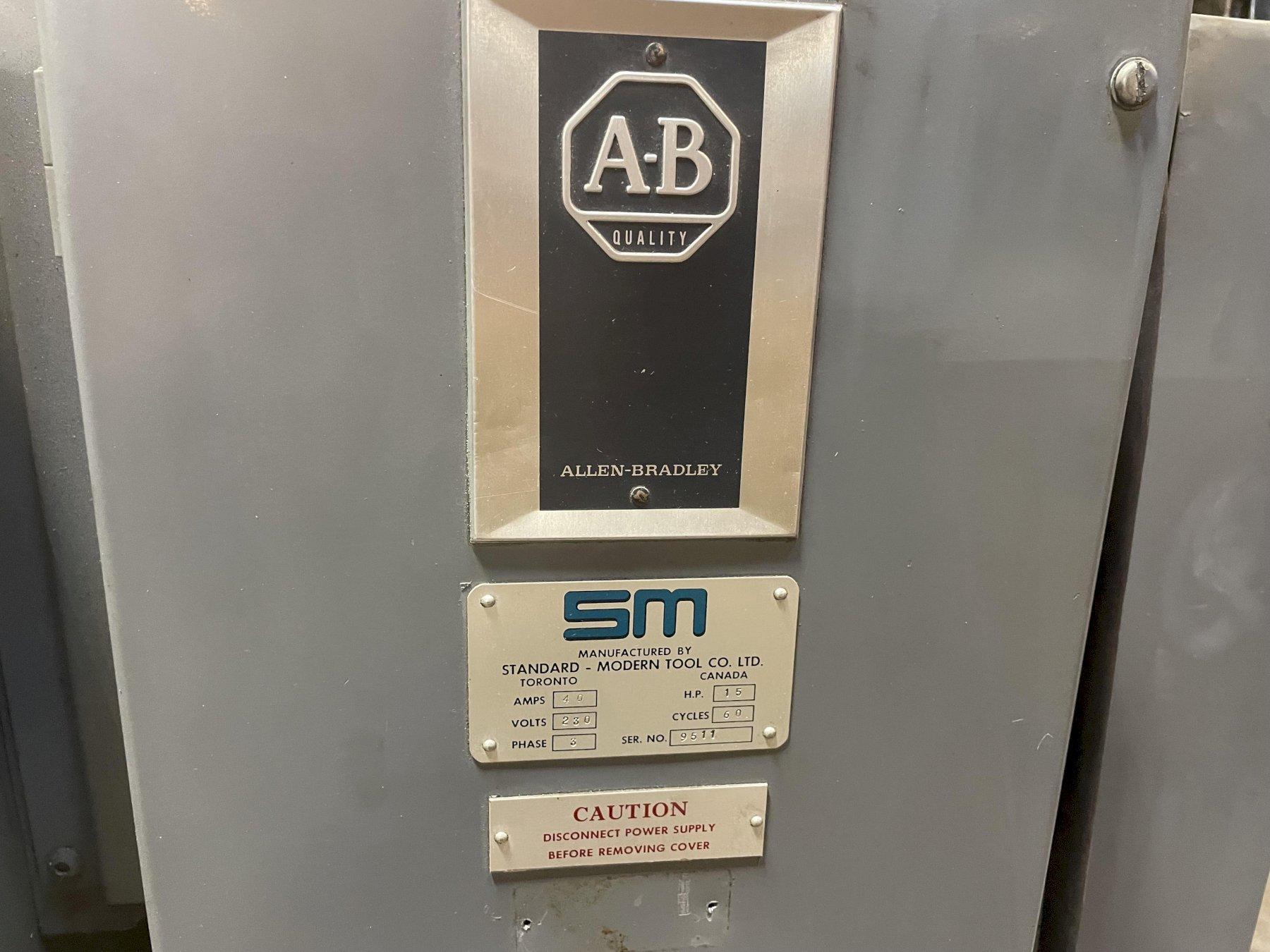

Main Drive Motor: 15 HP
Bar Capacity: 3”

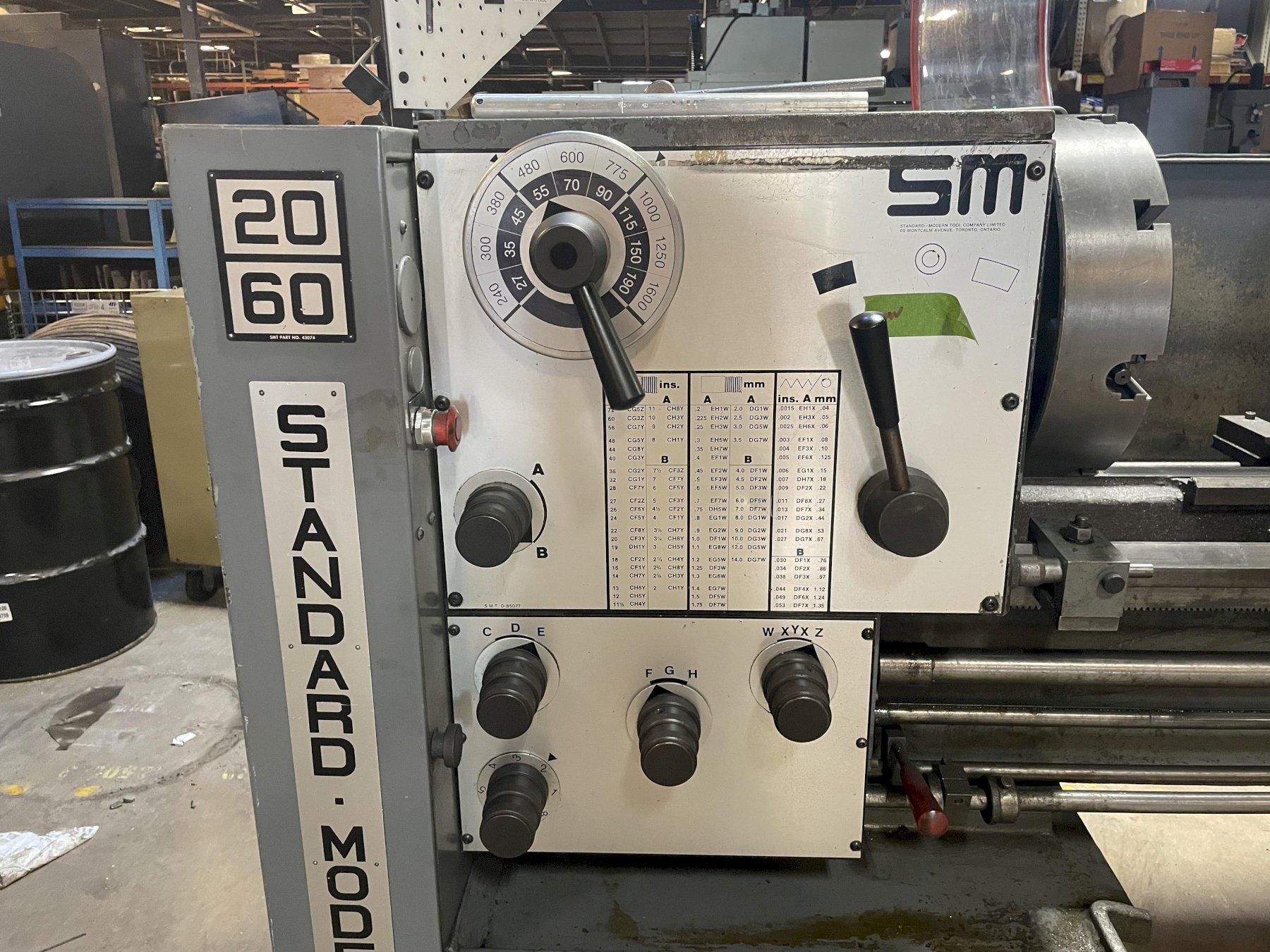

Headstock
Spindle Speed Ranges: 18
Speed Range: 27 – 1,600 RPM
Spindle Nose Camlock: D1-8
Spindle Hole: 3.06”
Spindle Center: 5 MT

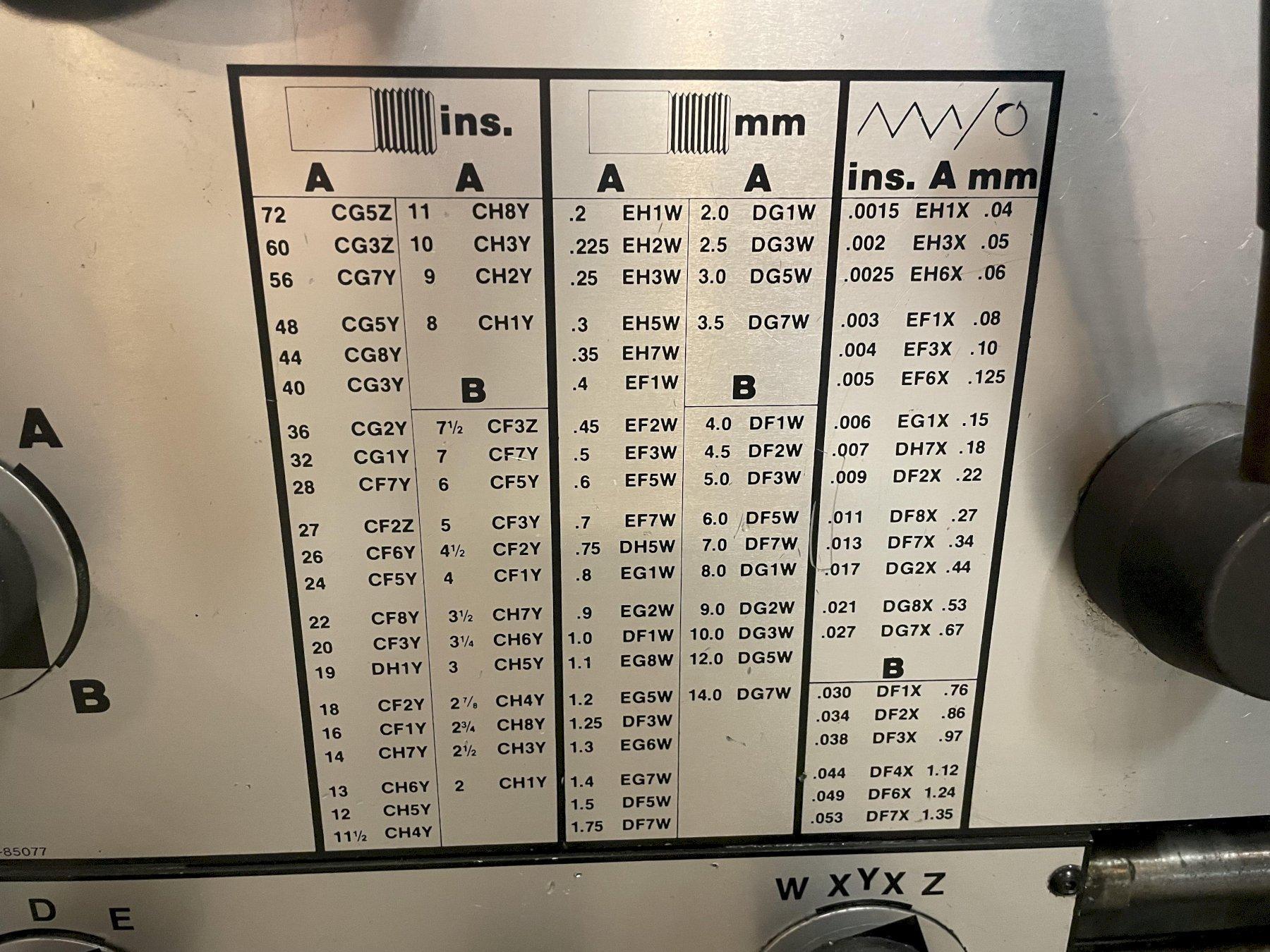

Feedbox
Feed & Thread Selections: 66 (in/mm)
Inch Feed Range, Longitudinal: .0015 - .105 IPR
Inch Thread Range: 2- 127 TPI
Metric Feed Range, Longitudinal: .04 – 2.67 mm/rev
Metric Thread Range: .2 – 14 mm lead

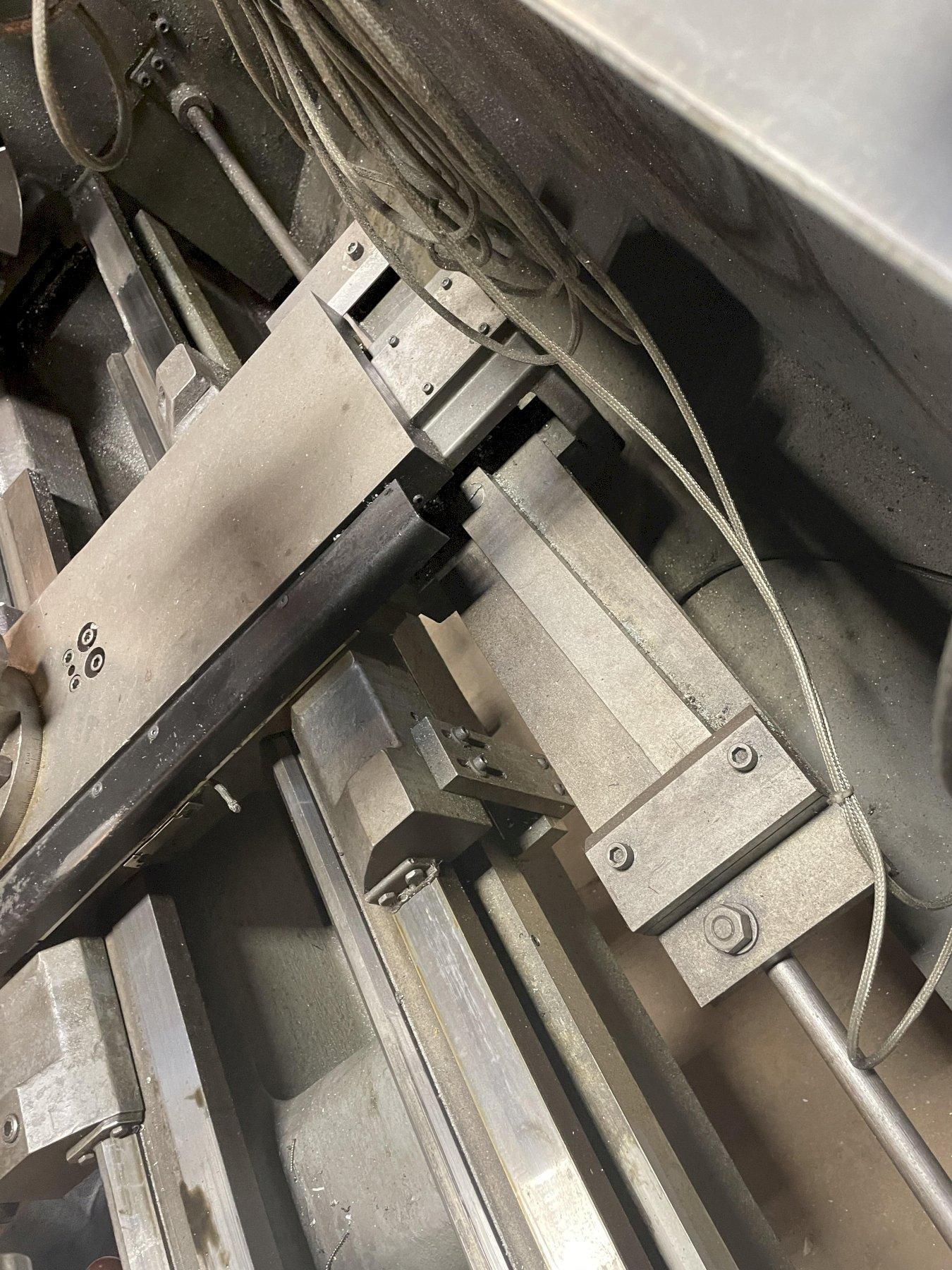

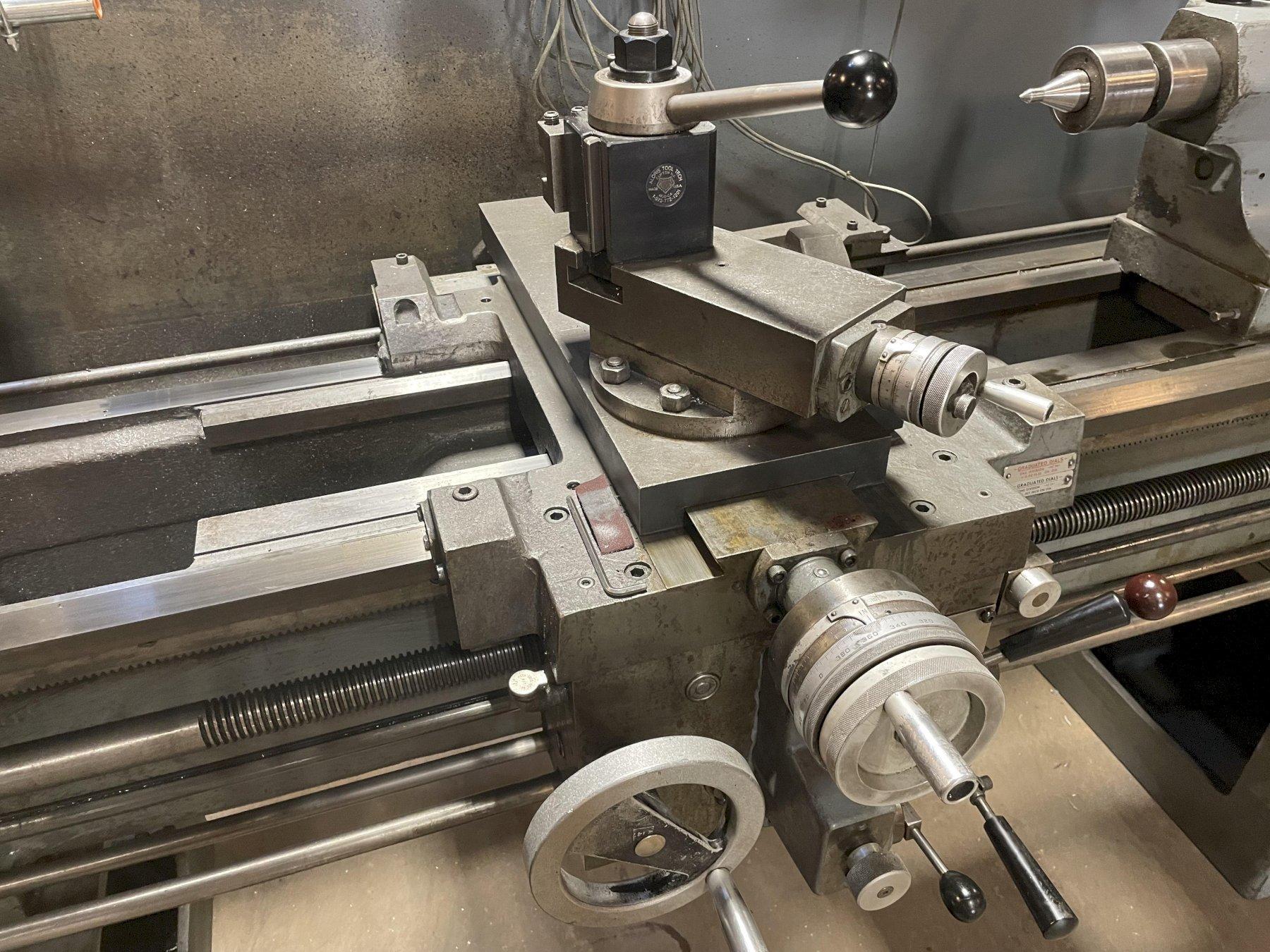

Carriage Cross-Slide
Cross-Slide Travel: 12"
Compound Travel: 5”

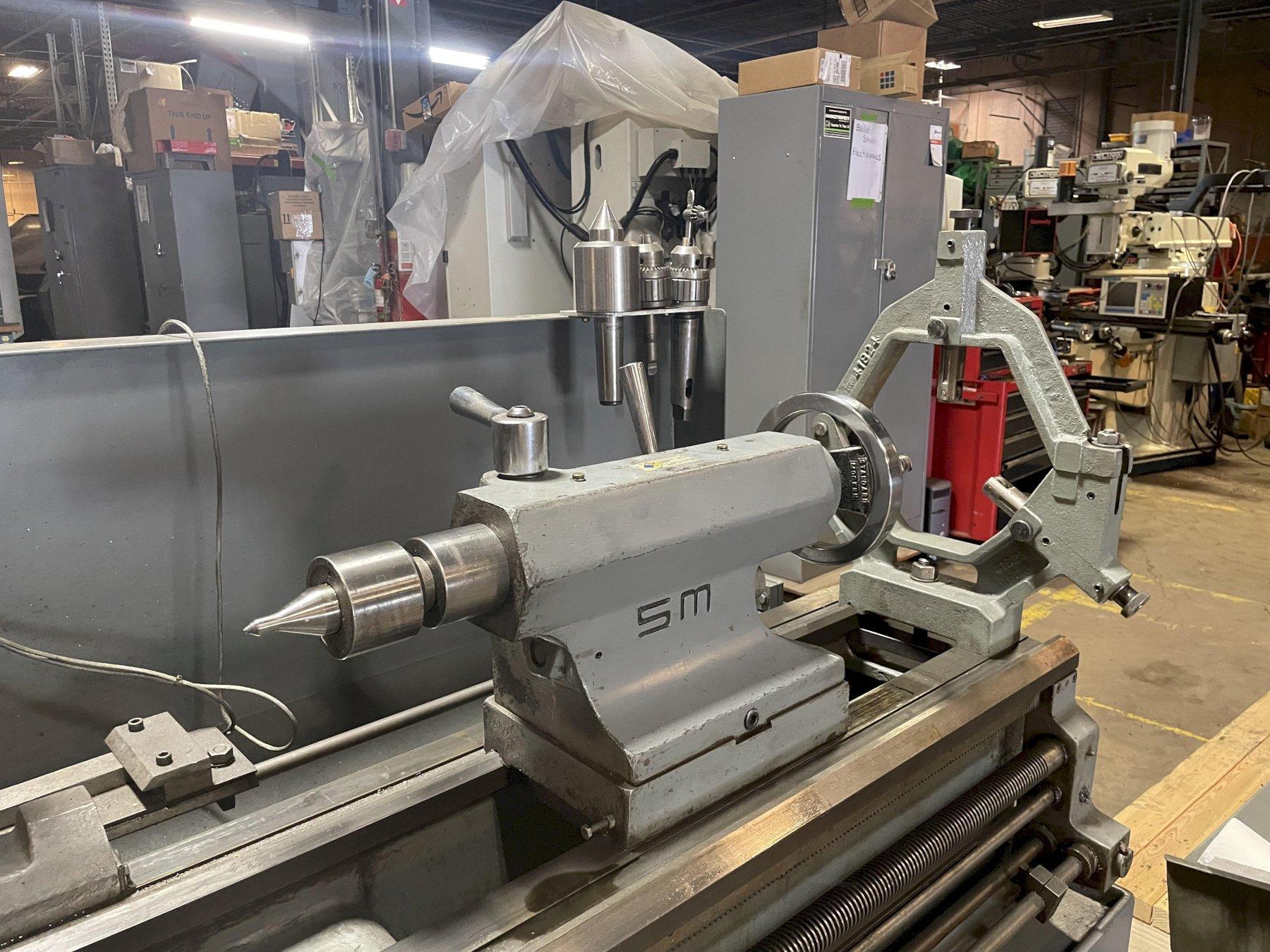

Tailstock
Quill Diameter: 2.94”
Quill Travel: 8"
Tailstock Spindle Taper: 5 MT
Equipped With

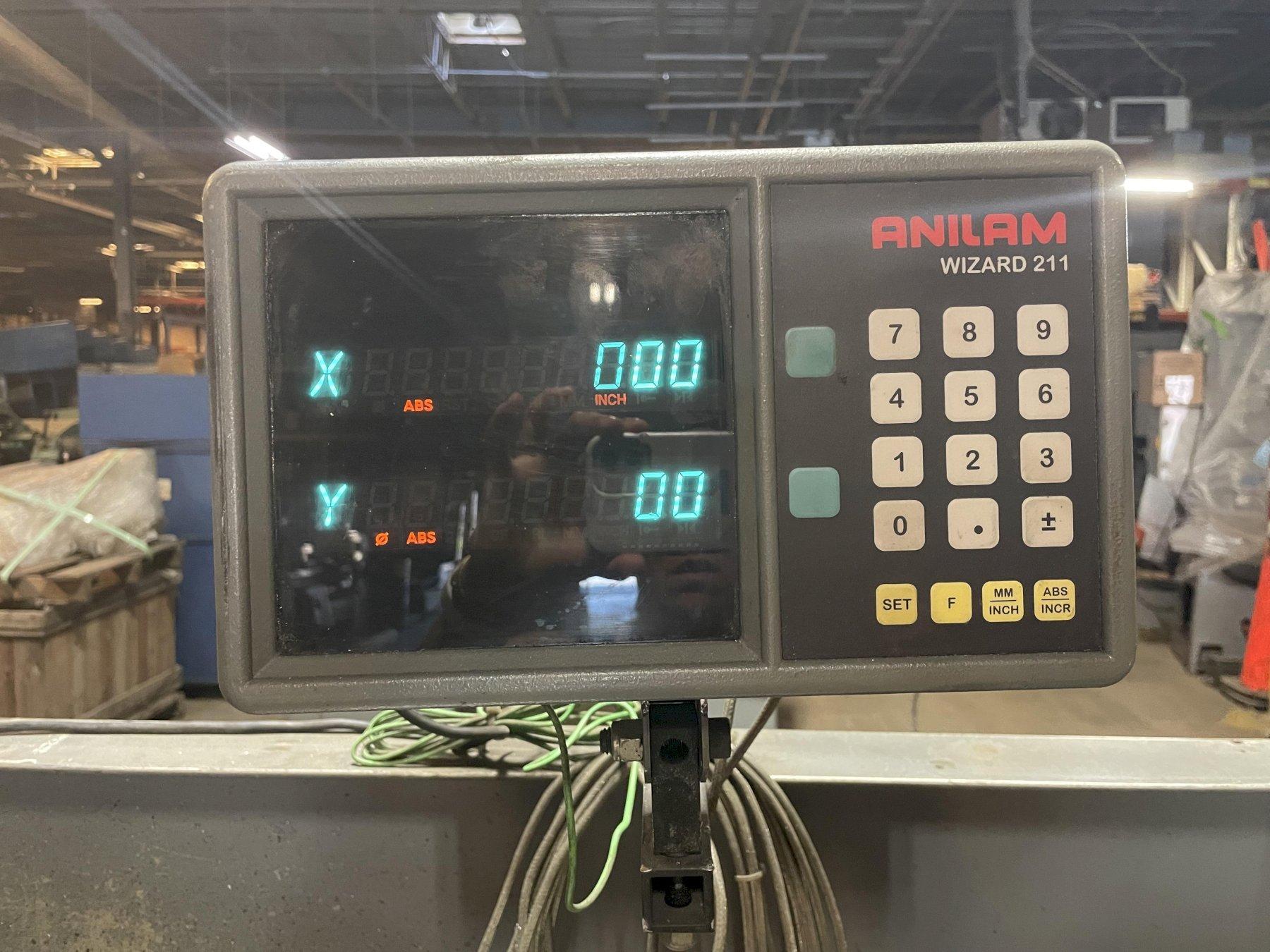

Anilam Wizard 211 Digital Readout
3-Jaw Chuck

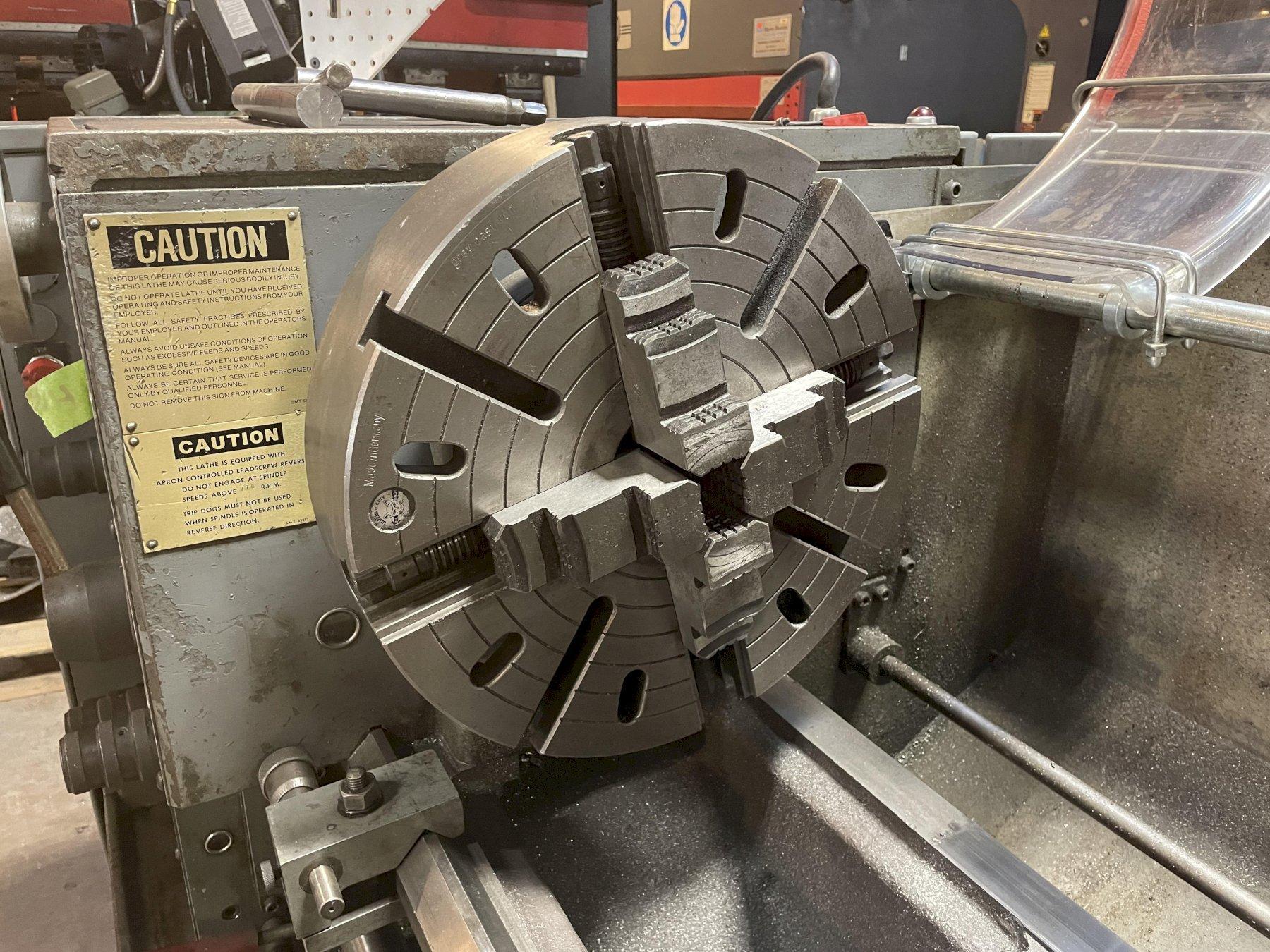

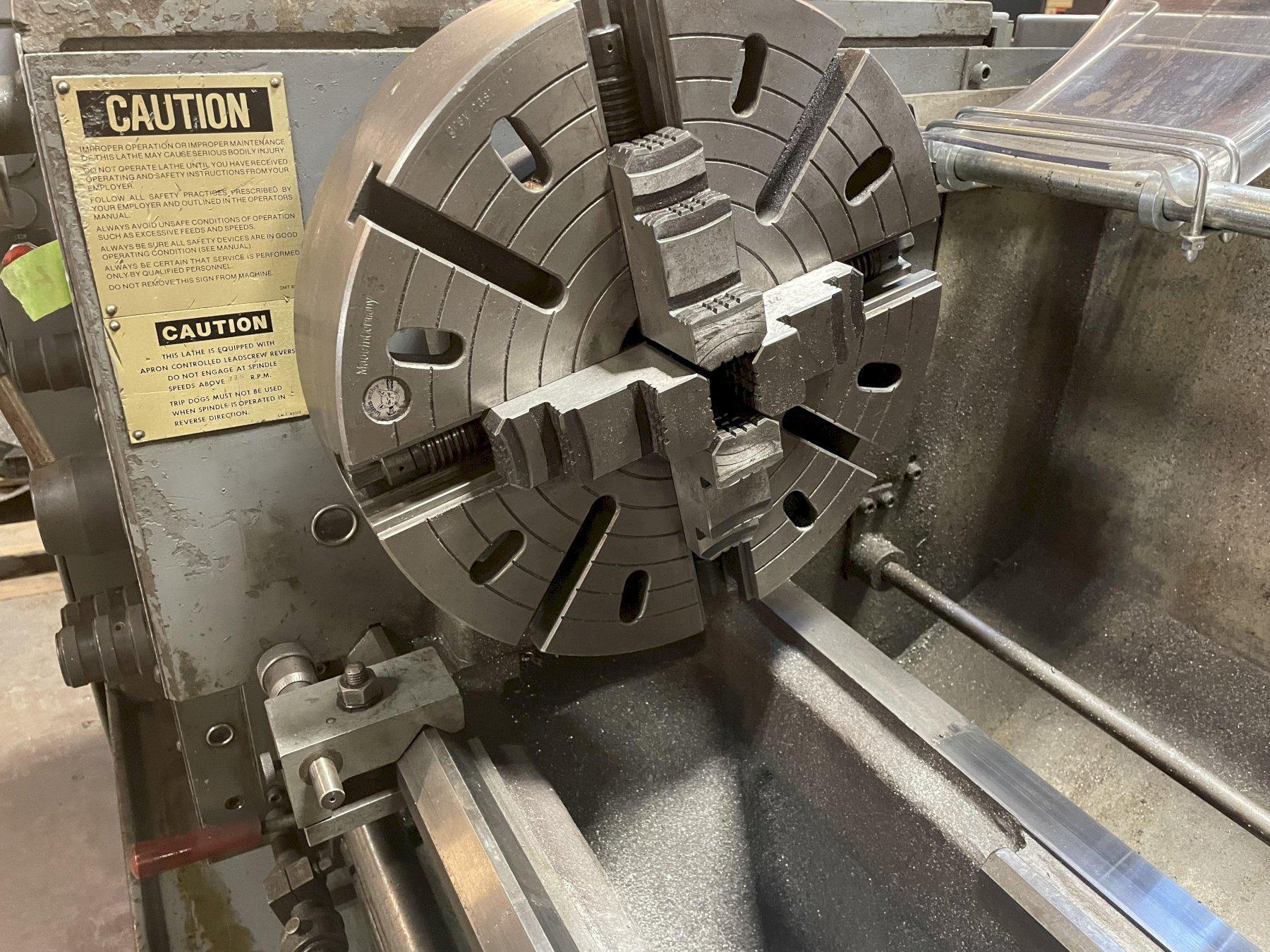

4-Jaw Chuck
Steady Rest

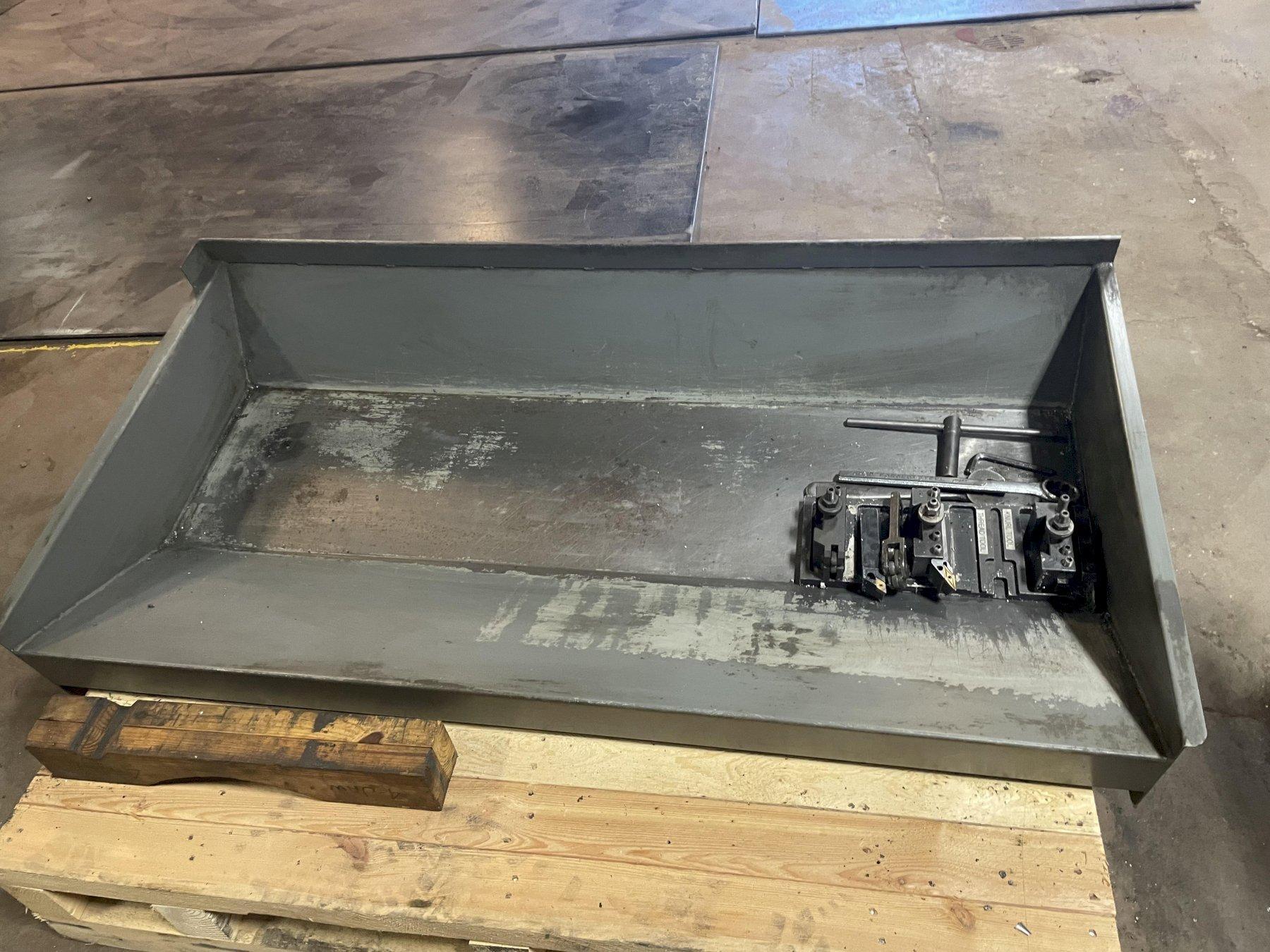

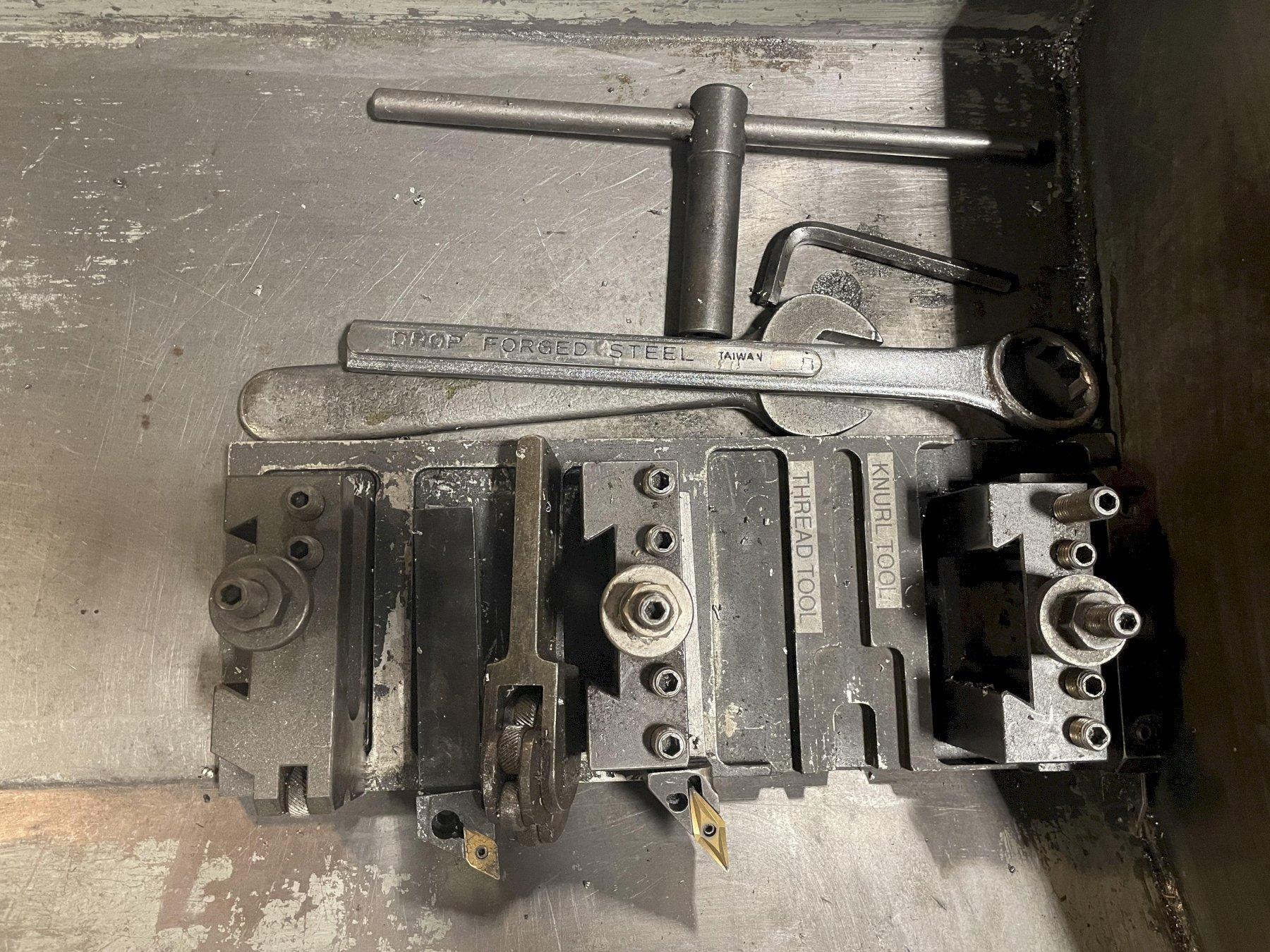

Quick Change Tool Post with Holders

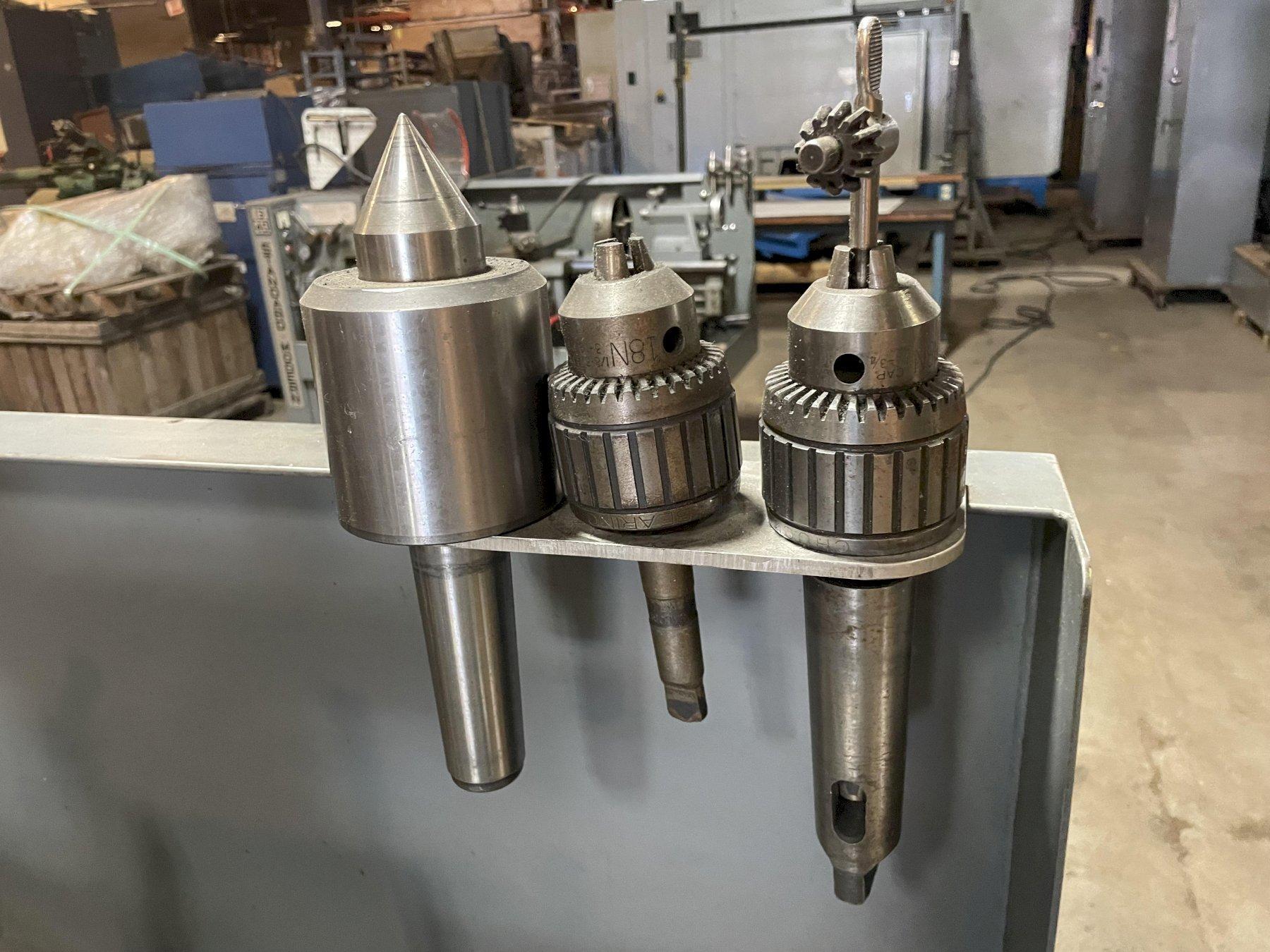

Lathe Centers

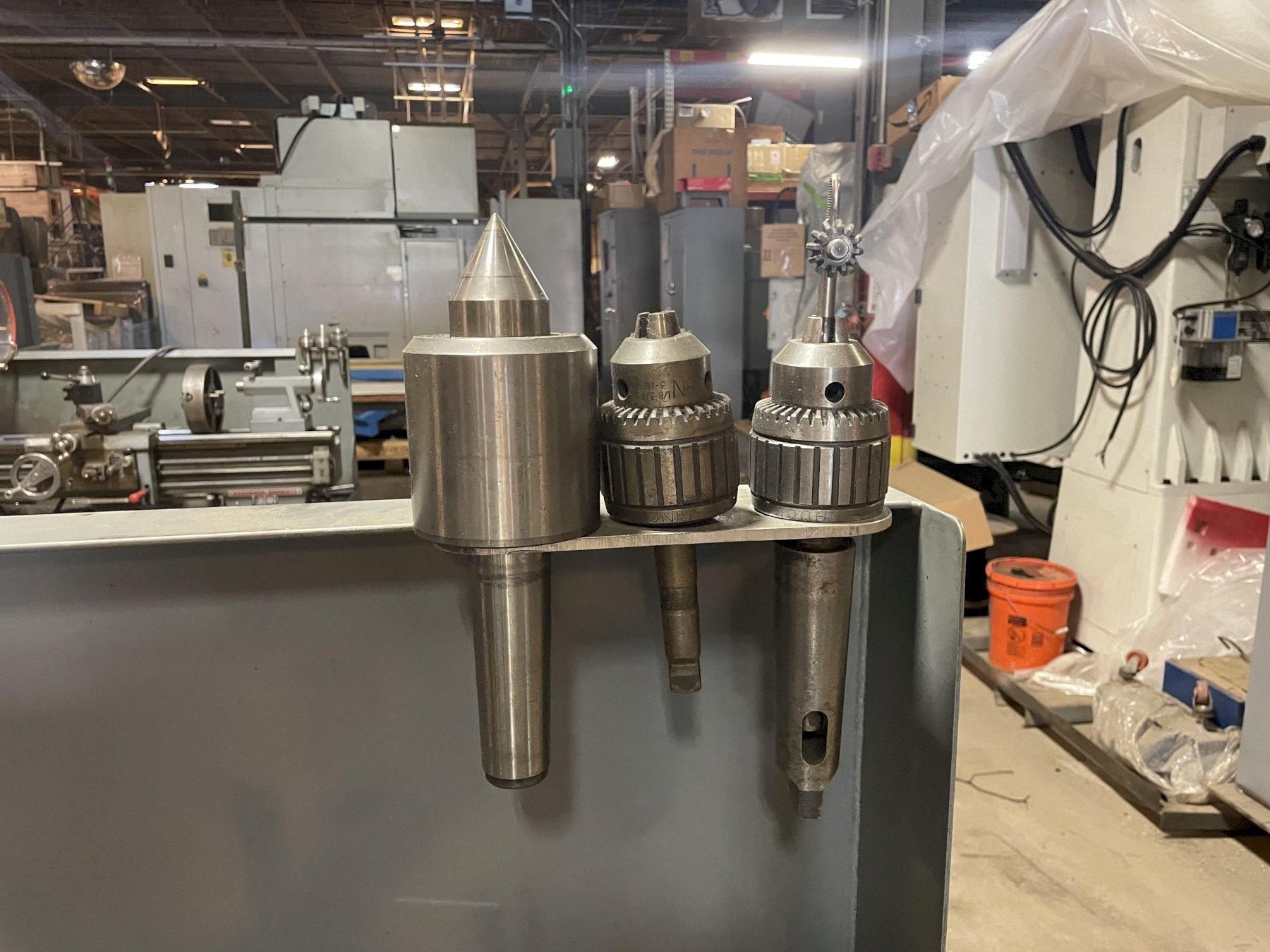

Jacobs Tailstock Drill Chucks
