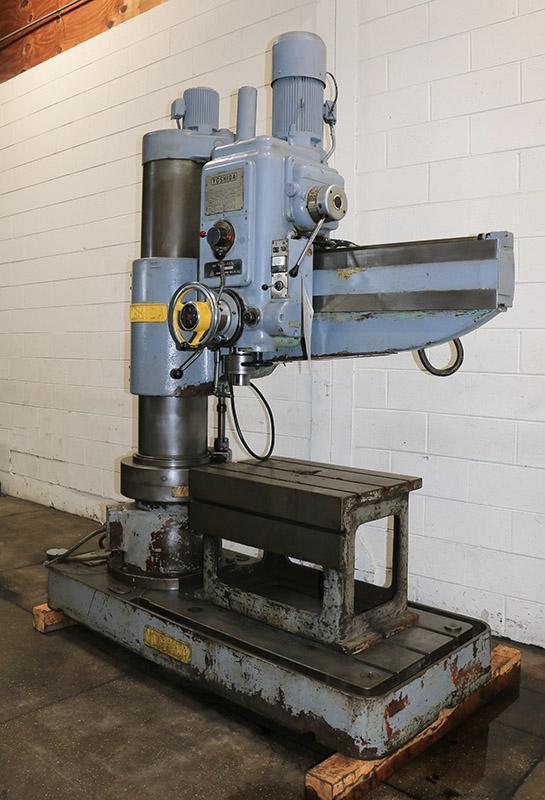

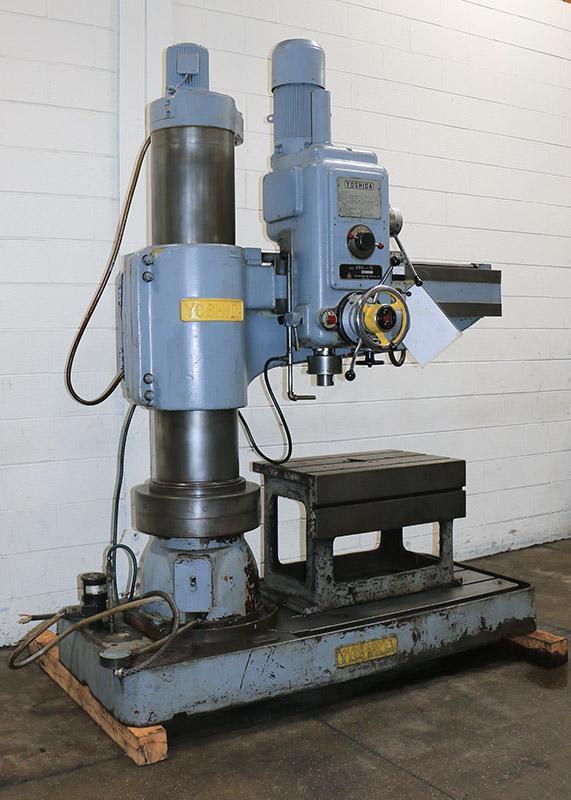

CAPACITIES

MAXIMUM DISTANCE, COLUMN SURFACE TO SPINDLE END: 45-1/4”

MINIMUM DISTANCE, COLUMN SURFACE TO SPINDLE END: 11-1/16”

MAXIMUM DISTANCE, BASE TOP TO SPINDLE END: 50-13/16”

MINIMUM DISTANCE, BASE TOP TO SPINDLE END: 15/16”

DRILLING CAPACITY IN STEEL: 2”

TAPPING CAPACITY IN STEEL: 1-7/8”

BORING CAPACITY IN STEEL: 2-3/4”

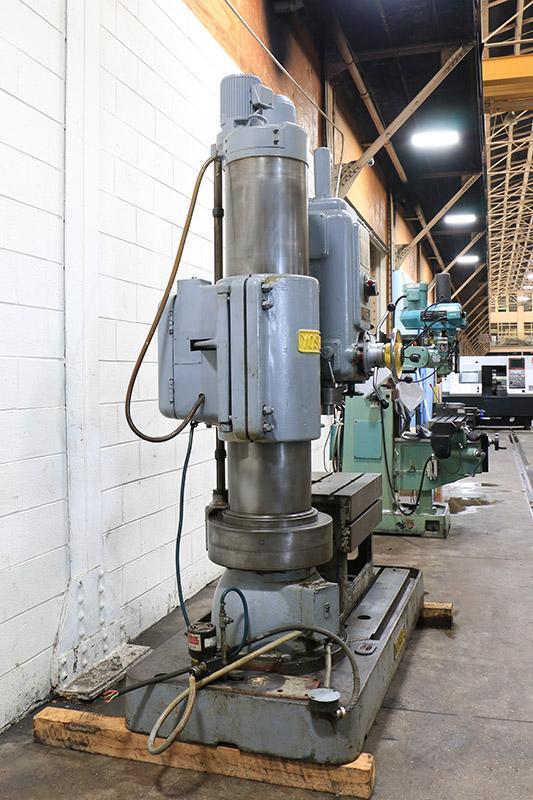

ARM & COLUMN COLUMN DIAMETER: 12-5/8”

HORIZONTAL TRAVERSE OF SPINDLE END:  33-7/8”

VERTICAL TRAVEL OF ARM: 24-3/8”

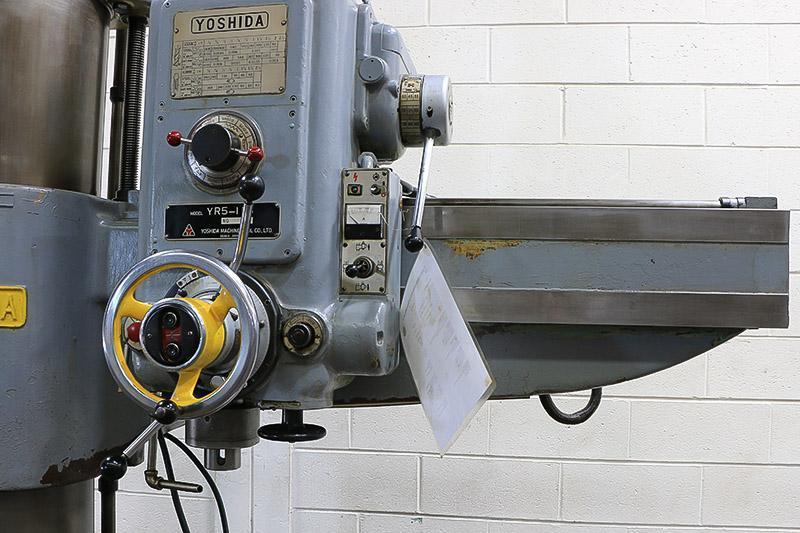

SPINDLE

SPINDLE TAPER:  NO. 5 MT

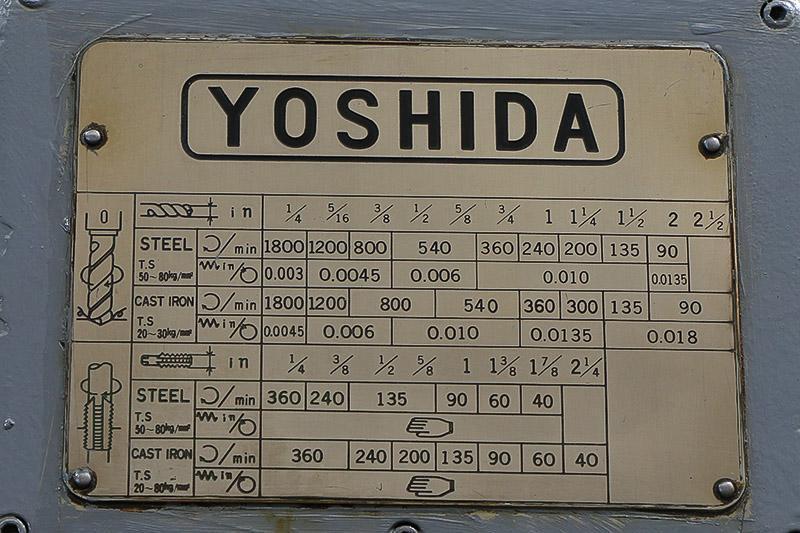

SPINDLE SPEEDS (12): 40 TO 1800 RPM

SPINDLE STROKE: 11-3/4”

SPINDLE FEEDS (9): 0.002 TO .040 IPR

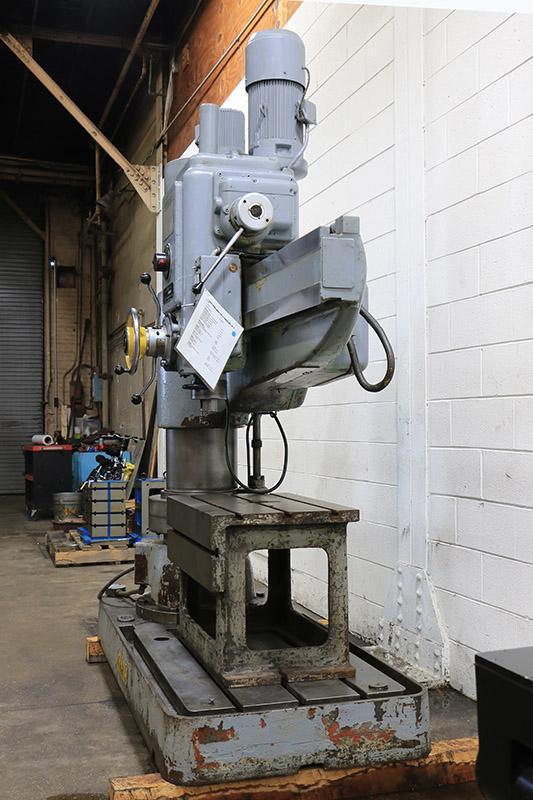

BASE PLATE

SIZE:  7-1/2” X 33-7/8” X 74-13/16”

SIZE OF WORKING SURFACE: 27-3/4” X 43-5/16”

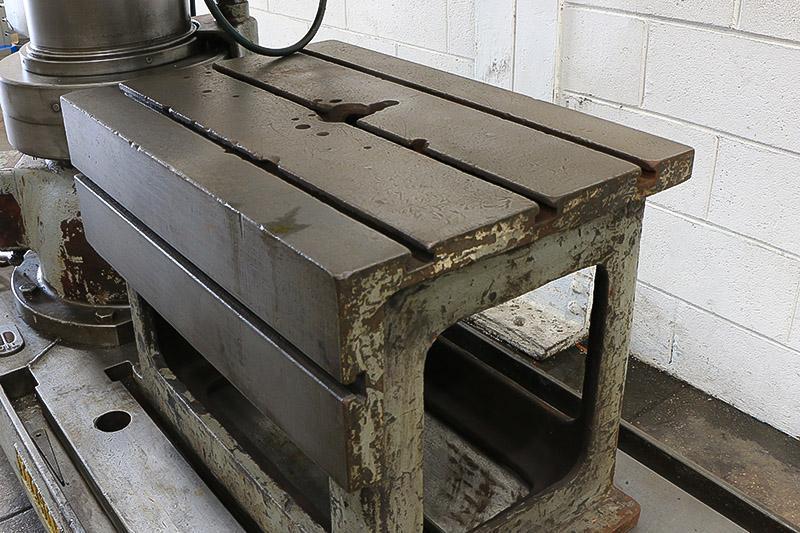

SIZE OF TABLE:  17-3/4” X 19-11/16” X 25-5/8”

MOTOR

SPINDLE DRIVE: 5 HP

ARM ELEVATING: 1.5 HP

CLAMPING: 0.5 HP

COOLANT PUMP: 1/6 HP

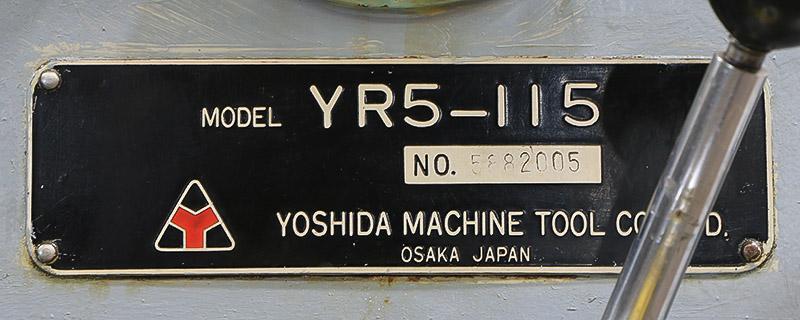

GENERAL

ELECTRICS: 220 VOLTS, 3 PH, 60 CY
